BODY & CHASSIS
FRAME: Welded Steel with E-Coat & DuraShield™ Powder Coat
BODY & FINISH: Injection Molded TPO
STANDARD COLOR: Forest Green

DIMENSIONS
OVERALL LENGTH: 110in
OVERALL WIDTH: 49in
OVERALL HEIGHT: 51 in ( w/o Roof) / 74 in (w/ Canopy)
WHEEL BASE: 65.5 in
WHEEL TRACK: 37 in Front / 38 in Rear
GROUND CLEARANCE: 5.5 in

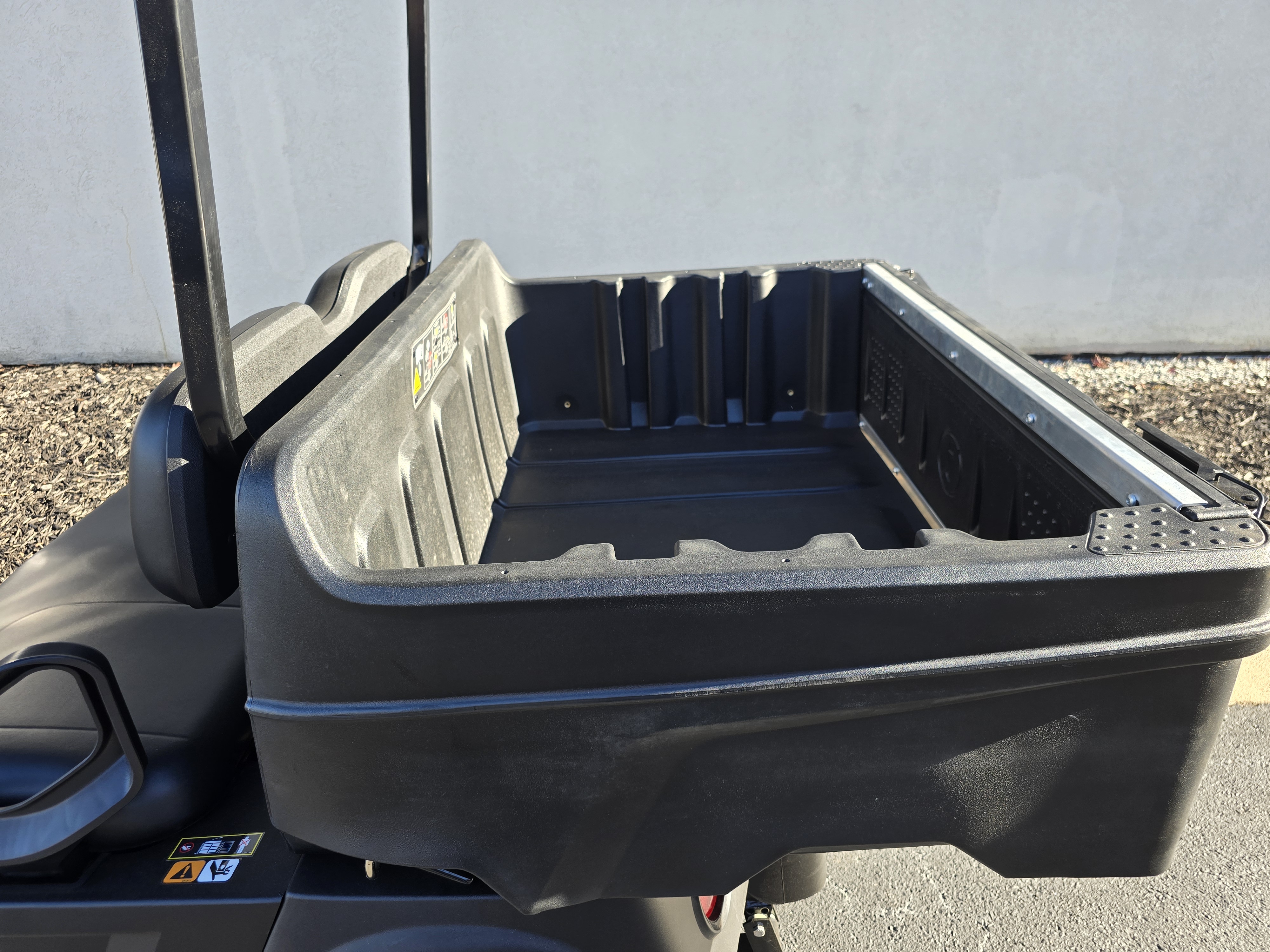

CARGO BOX CAPACITY: 8.4 cu ft.
CARGO BOX DIMENSIONS: 28.5 in (L) x 44.5 in (W) x 12 in (D)

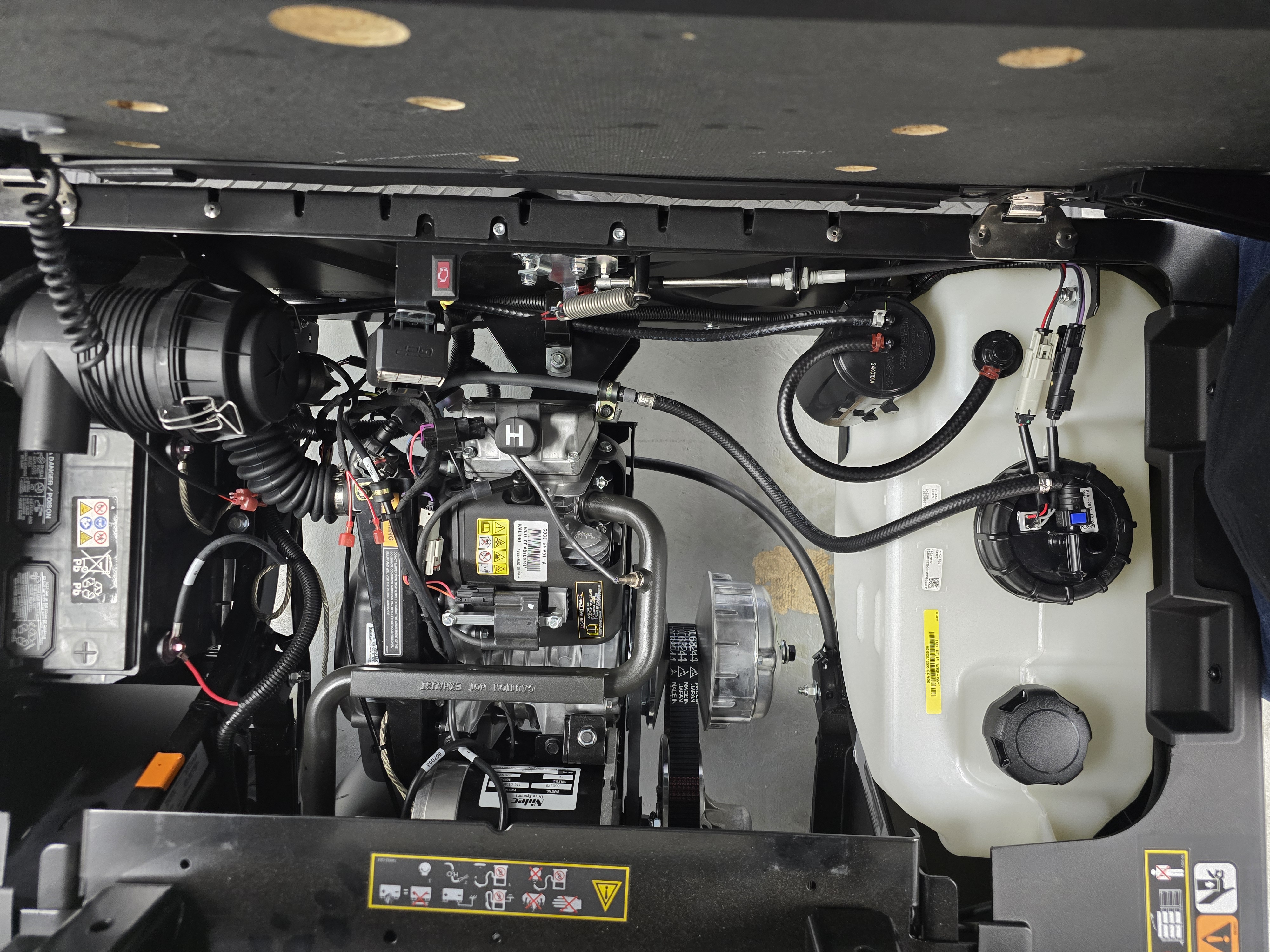

POWER
POWER TRAIN: 4-Cycle, 24.5 cu in (401cc)
VALVE TRAIN: Single Cylinder OHV
HORSEPOWER (KW): 13.5 hp (10.1 kW)
ELECTRICAL SYSTEM: Starter/Generator.  Solid State Reg.
BATTERY: One, 12V Maintenance Free
AIR CLEANER: Replaceable Industrial  Rated Dry Cartridge
LUBRICATION: Pressurized Oil System
OIL FILTER: Spin-On
COOLING SYSTEM: Air Cooled
FUEL CAPACITY: 5.96 Gallon
DRIVE TRAIN: Continuously Variable Transmission
TRANSAXLE: Differential w/ Helical Gears
GEAR SELECTION: Forward - Reverse
REAR AXLE RATIO: 11.47: 1 (Forward)  14.35:1 (Reverse)

PERFORMANCE

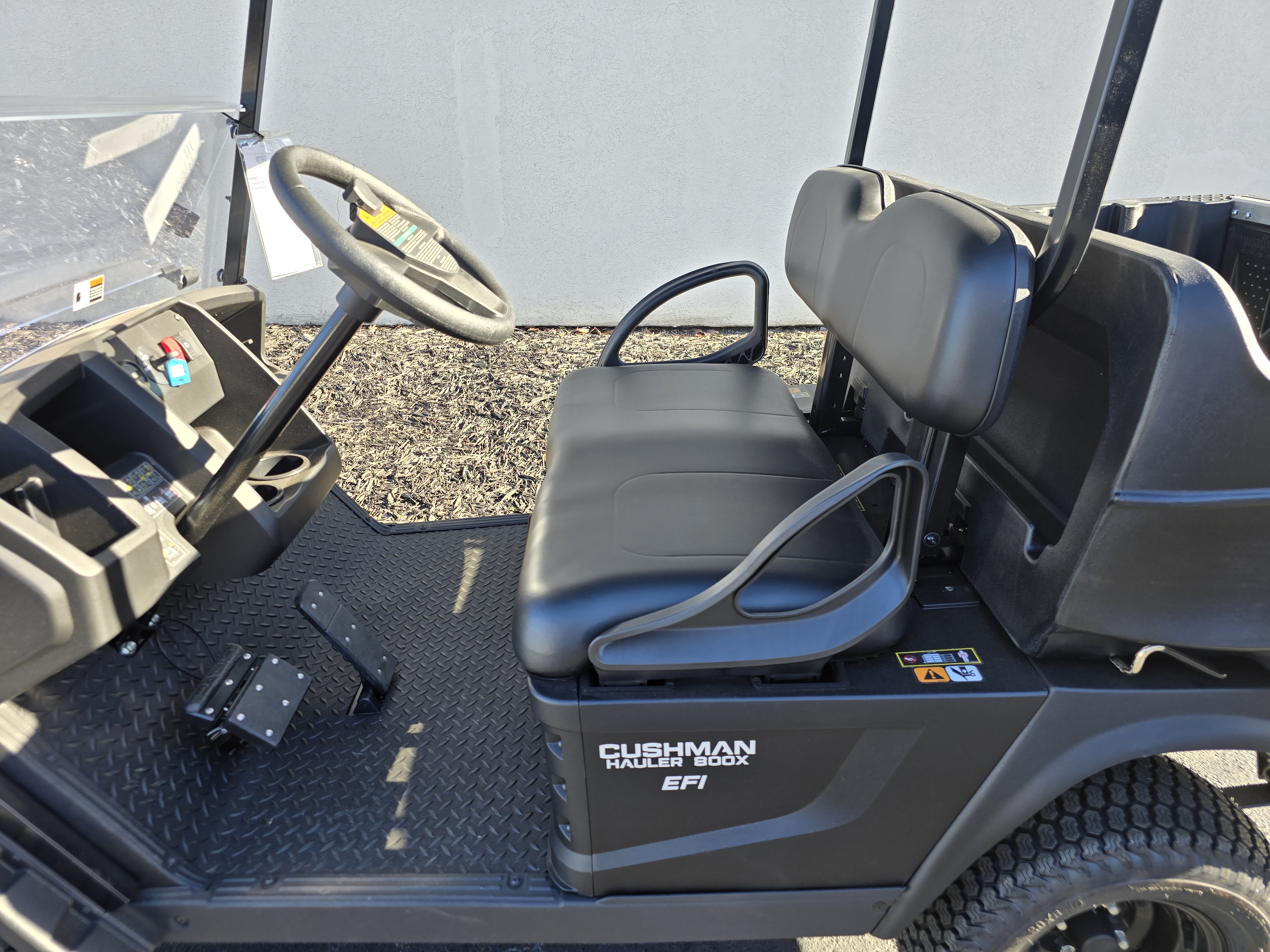

SEATING CAPACITY: 2-Person (Bench)
WEIGHT W/O BATTERIES: 800lb
CURB WEIGHT: 830 lb
VEHICLE LOAD CAPACITY: 725 lb
BED LOAD CAPACITY: 325 lb
TOWING CAPACITY: 500 lb
OUTSIDE CLEARANCE CIRCLE: 18.9 ft
SPEED: 16.5 mph ± 0.5 mph

STEERING & SUSPENSION

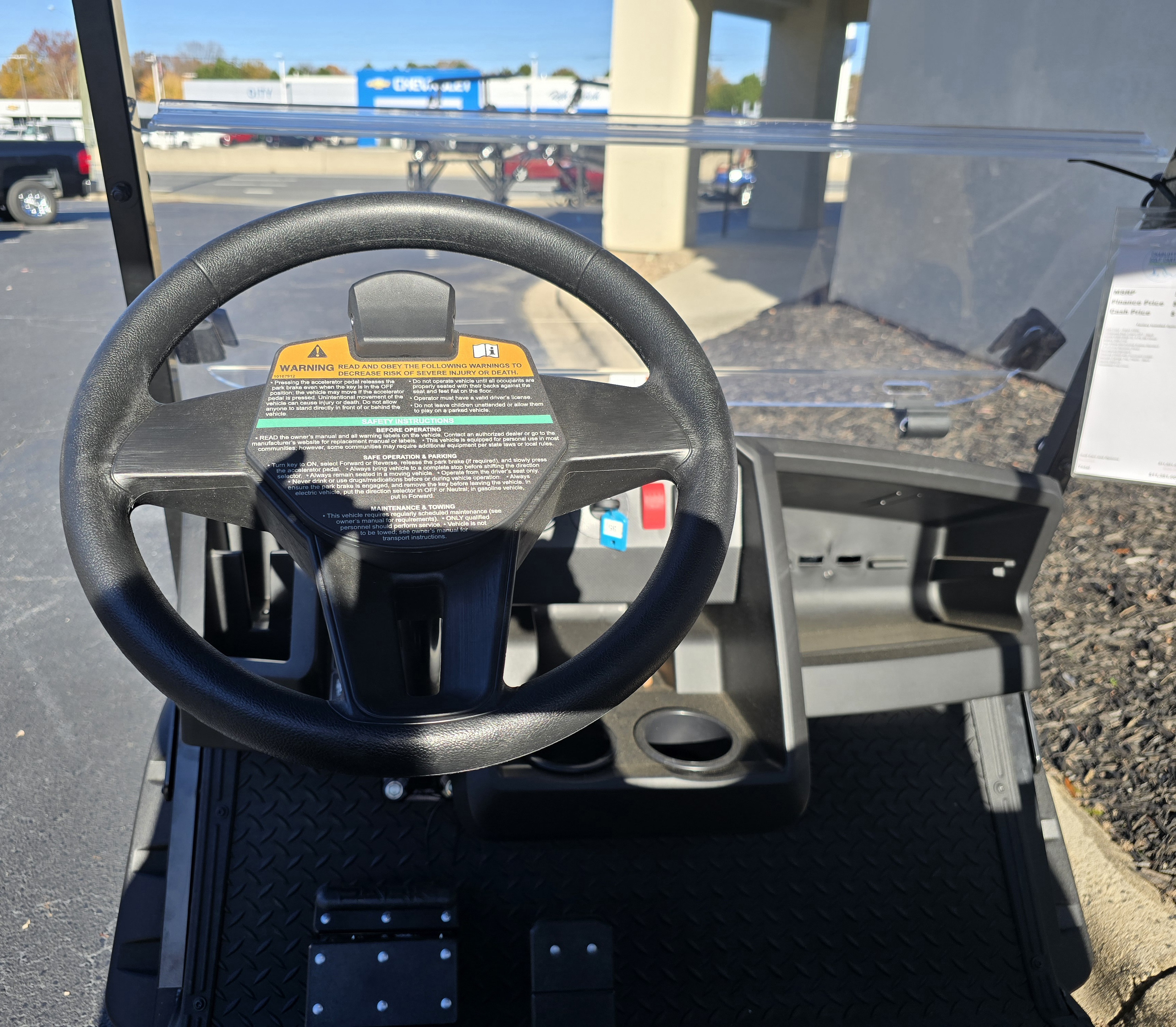

STEERING: Self-Compensating Rack and Pinion
SUSPENSION: Leaf Springs w/ Hydraulic Shock Absorbers
SERVICE BRAKE: Rear Wheel Mechanical Self-Adjusting Drum
PARKING BRAKE: Self-Compensating, SinglePoint Engagement

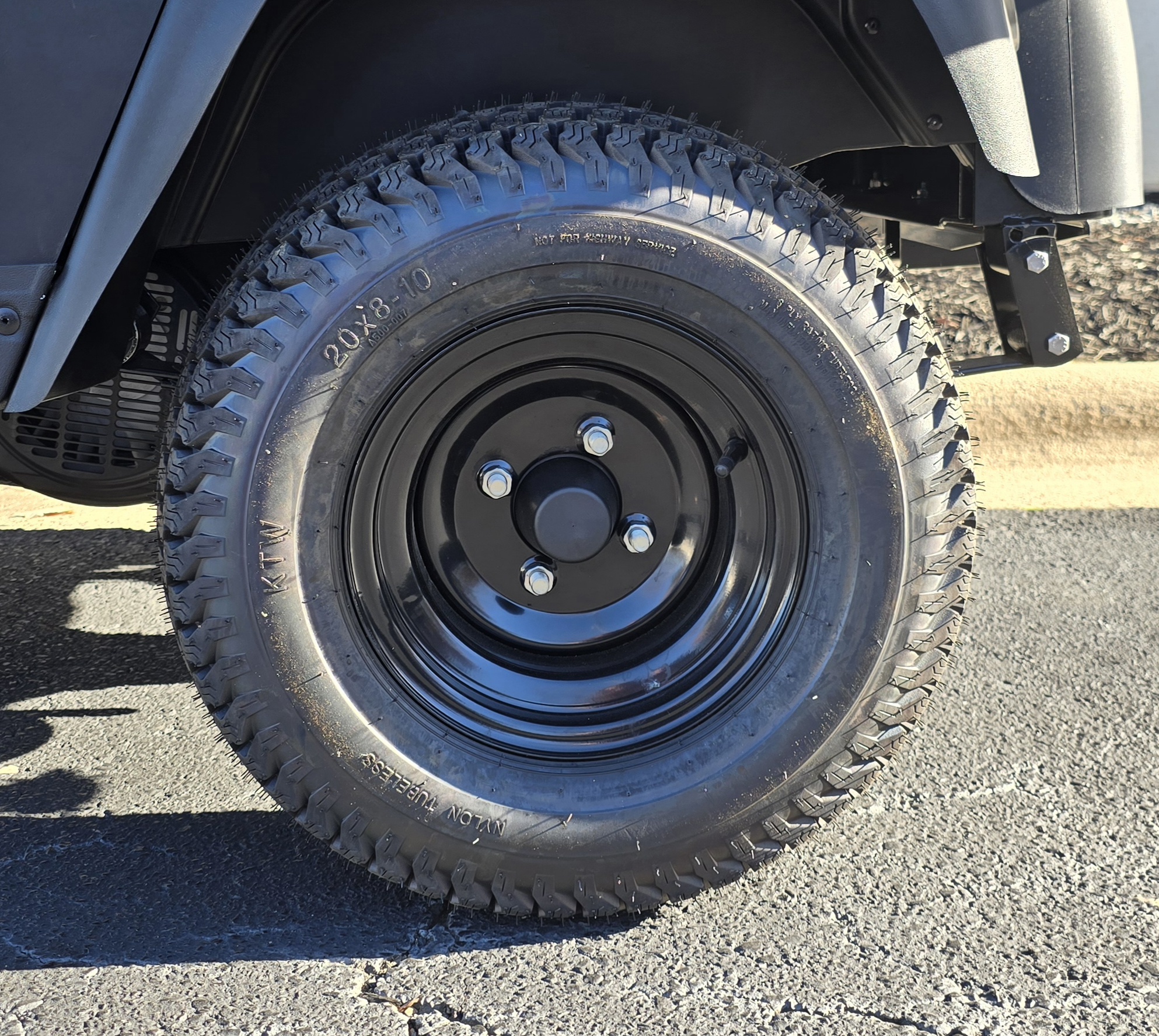

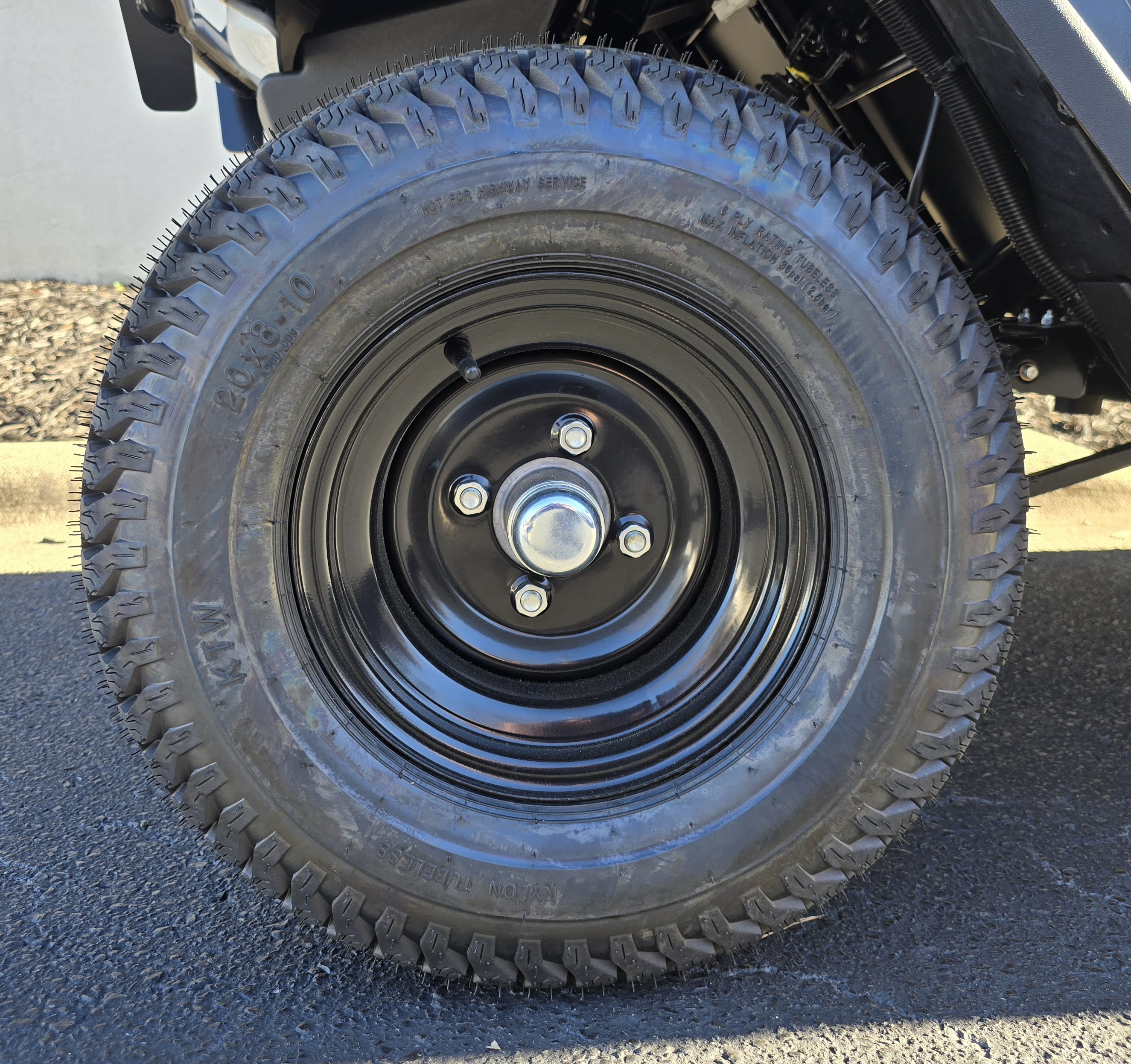

TIRES9FRONT & REAR): 20 x 8-10 (6 Ply Tires)
