BODY AND CHASSIS
Frame: Welded Steel with E-Coat and DuraShield Powder Coat
Body and Finish: Injection Molded TPO

DIMENSIONS
Length 134 inches
Width 48.5 inches
Overall Height: 48.6 inches no Canopy
                         72 inches with Roof
Wheel Base: 93.5 inches
Wheel Track: 34.2 inches (Front)/38.0 inches (Rear)
Ground Clearance: 3.9 inches

POWER
Power Train: 56.7 Li-Ion Battery
Horsepower: 14.9 hp Peak
Electrical System: 48V, 12V Auxiliary
Battery: 56.7V max Li-Ion Composite Module   Cell Module (Twin Pack)
Drive Train: Motor Shaft Direct Drive
Transaxle: Limited-Slip Differential with Helical Gears
Gear Selection: Dash Mount Forward - Neutral - Reverse Key Switch
Rear Axle Ratio: 16.99:1

PERFORMANCE
Seating Capacity: 6-Person
Vehicle Load Capacity: 1200 lbs
Outside Clearance Circle: 25.5 feet
Speed: 16.5 mph

STEERING AND SUSPENSION
Steering: Self-Compensating Rack and Pinion
Suspension: Leaf Springs with Hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake: Automatic Electro-Magnetic

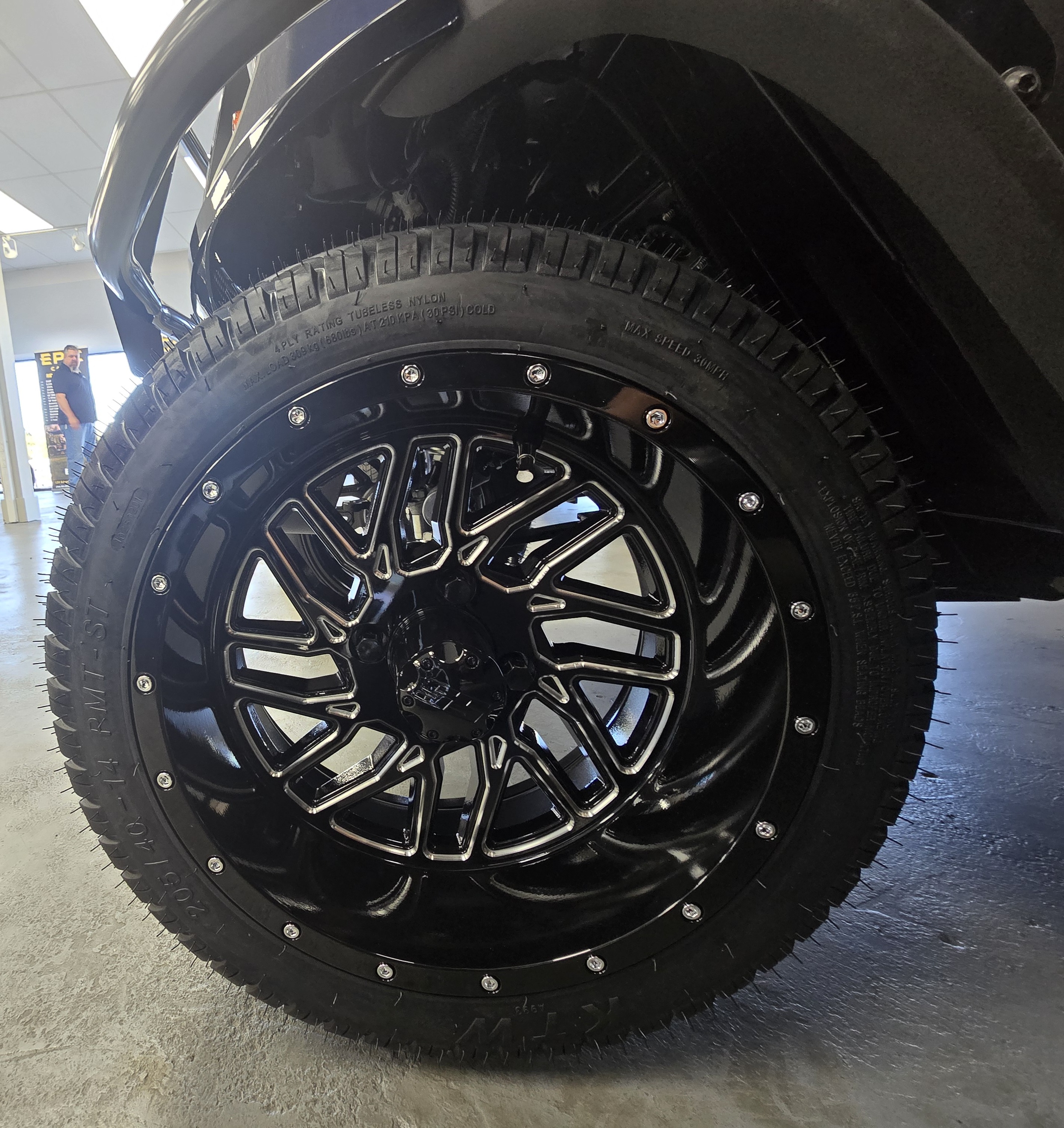

**UPGRADED TIRES AND WHEELS
     ASM,205/35R14 GLOSS BLACK/MACHINED SPDR
