| AIR CLEANER Replaceable Industrial Rated Dry Cartridge |
| BATTERY (QTY/TYPE) One, 12V Maintenance Free |
| BED LOAD CAPACITY 400 lb (181.4 kg) |
| BODY & FINISH Injection Molded TPO |

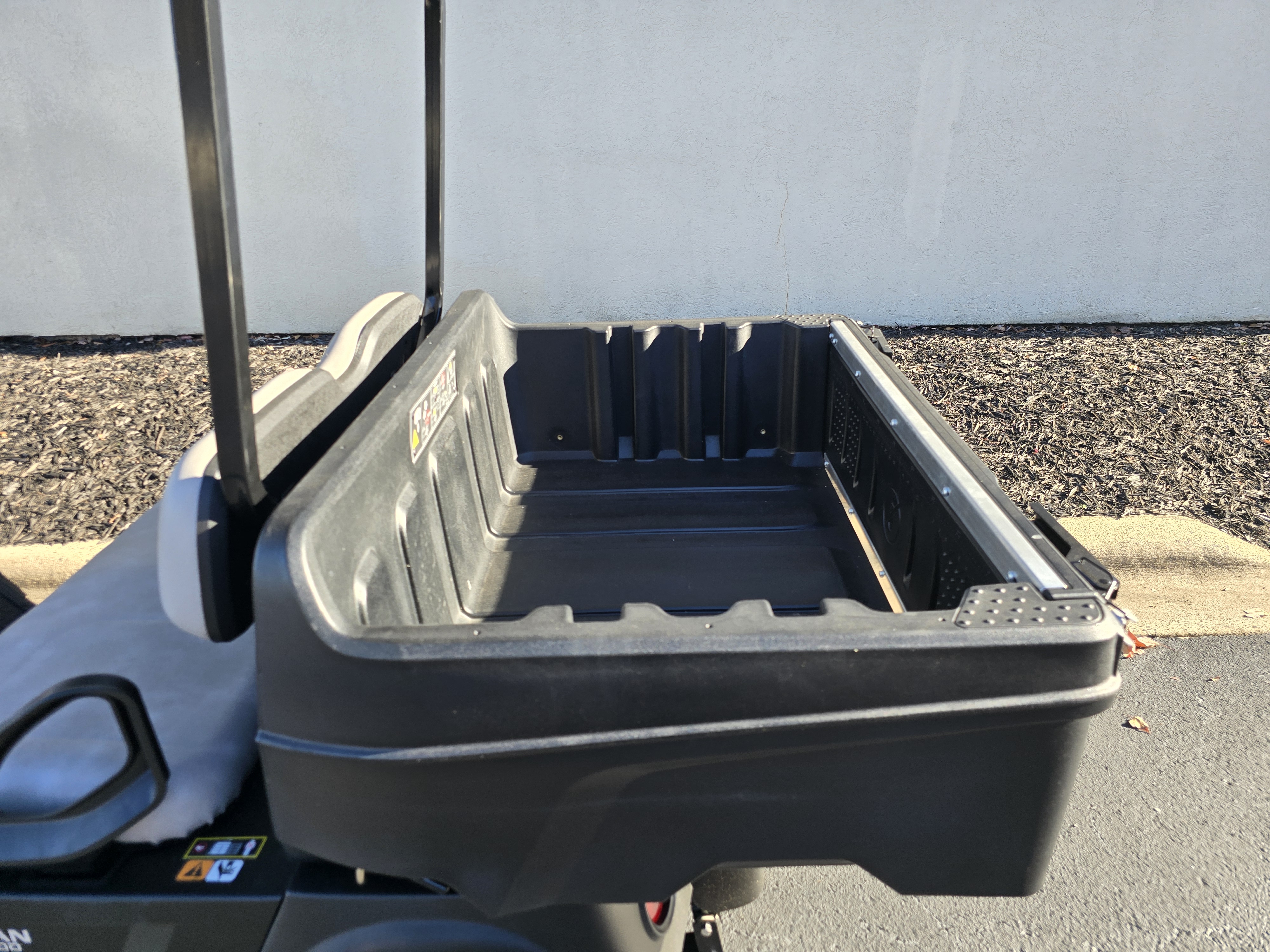

| CARGO BOX CAPACITY 8.4 cu ft (0.24 cu m) |
| CARGO BOX DIMENSIONS 28.5 in (L) x 44.5 in (W) x 12 in (D) (72.4 cm x 113 cm x 30.5 cm) |
| CARGO BOX MATERIAL Roto-Molded Polyethylene |
| COOLING SYSTEM Air Cooled |
| DRIVE TRAIN Continuously Variable Transmission |
| ELECTRICAL SYSTEM Starter/Generator. Solid State Reg. |
| FRAME Welded Steel with E-Coat & DuraShield™ Powder Coat |
| FUEL CAPACITY 5.96 Gallon (22.6 L) tank |
| GEAR SELECTION Forward - Reverse |
| GROUND CLEARANCE 4.3 in (10.9 cm) |
| HORSEPOWER (KW) 13.5 hp (10.1 kW) |
| LUBRICATION Pressurized Oil System |
| OIL FILTER Spin-On |
| OUTSIDE CLEARANCE CIRCLE 18.9 ft (5.8 m) |
| OVERALL HEIGHT 47 in (119.4 cm) (No Canopy) 69.5 in (176.5 cm) (w/ Struts & Roof) |
| OVERALL LENGTH 110 in (279.4 cm) |
| OVERALL WIDTH 49 in (125 cm) |
| PARKING BRAKE Self-Compensating, Single-Point Engagement |

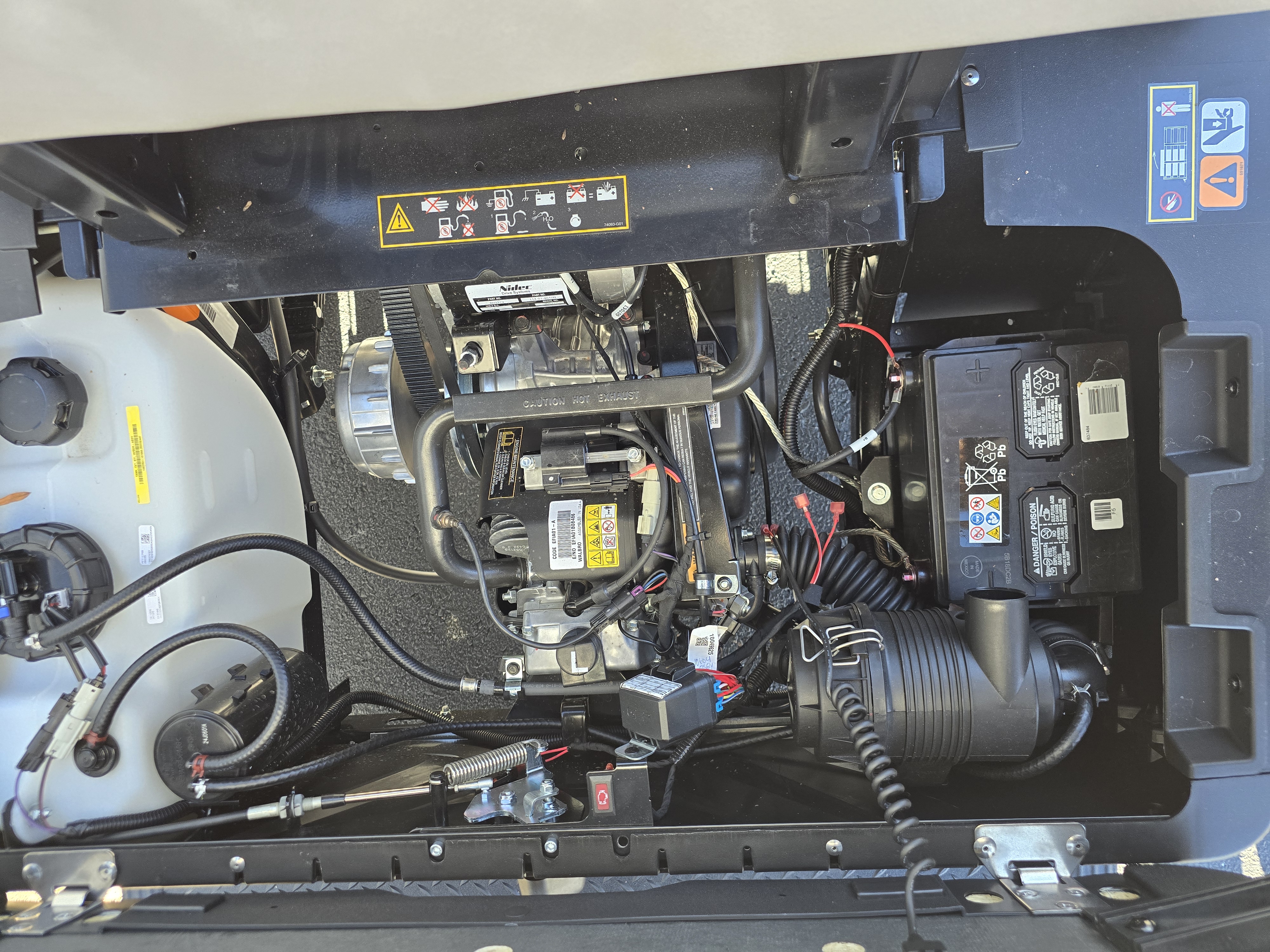

| POWER TRAIN 4-Cycle, 24.5 cu in (401cc) |
| REAR AXLE RATIO 11.47: 1 (Forward) 14.35:1 (Reverse) |
| SERVICE BRAKE Rear Wheel Mechanical Self-Adjusting Drum |
| SPEED 14.5 mph ± 0.5 mph |
| STEERING Self-Compensating Rack and Pinion |
| SUSPENSION Leaf Springs w/ Hydraulic Shock Absorbers |

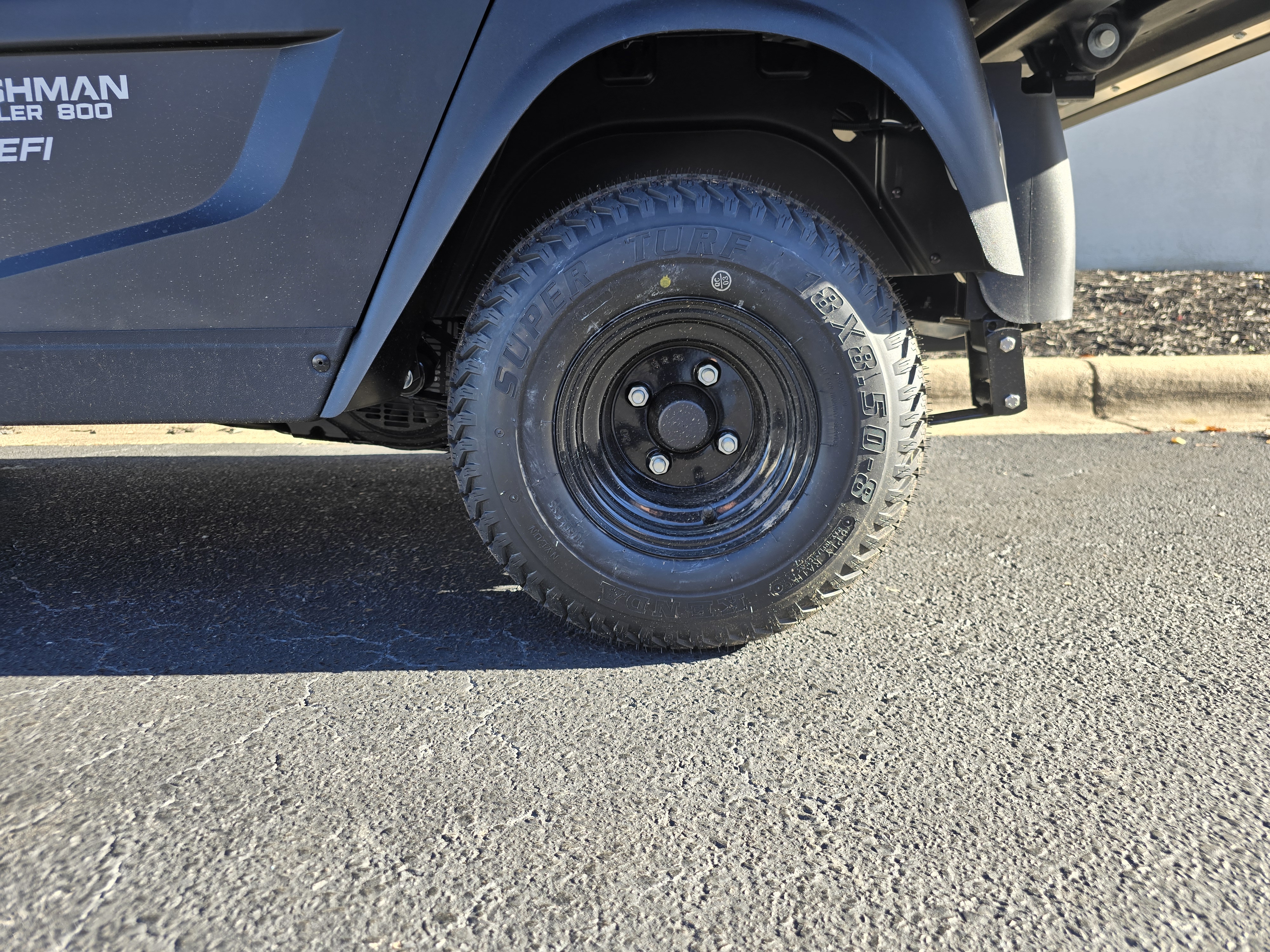

| TIRES (FRONT & REAR) 18 x 8.5 -8 (6 Ply Tires) |
| TOWING CAPACITY 900 lb (408.2 kg) |
| TRANSAXLE Differential w/ Helical Gears |
| VALVE TRAIN Single Cylinder OHV |
| VEHICLE LOAD CAPACITY 800 lb (362.9 kg) |
| WEIGHT - CURB 791 lb (359 kg) |
| WEIGHT W/O BATTERIES 761 lb ( 345.2 kg) |
| WHEEL BASE 65.5 in (166.4 cm) |
| WHEEL TRACK 37 in (94 cm) Front / 38 in (96.5 cm) Rear |
