BODY AND CHASSIS
Frame: Welded Steel with E-Coat and DuraShield Powder Coat
Body and Finish: Injection Molded TPO

DIMENSIONS
Length 110 inches
Width 49 inches
Overall Height: 47 inches no Canopy
                         69.5 inches with Roof
Wheel Base: 65.5 inches
Wheel Track: 37 inches (Front)/38 inches (Rear)
Ground Clearance: 4.3 inches

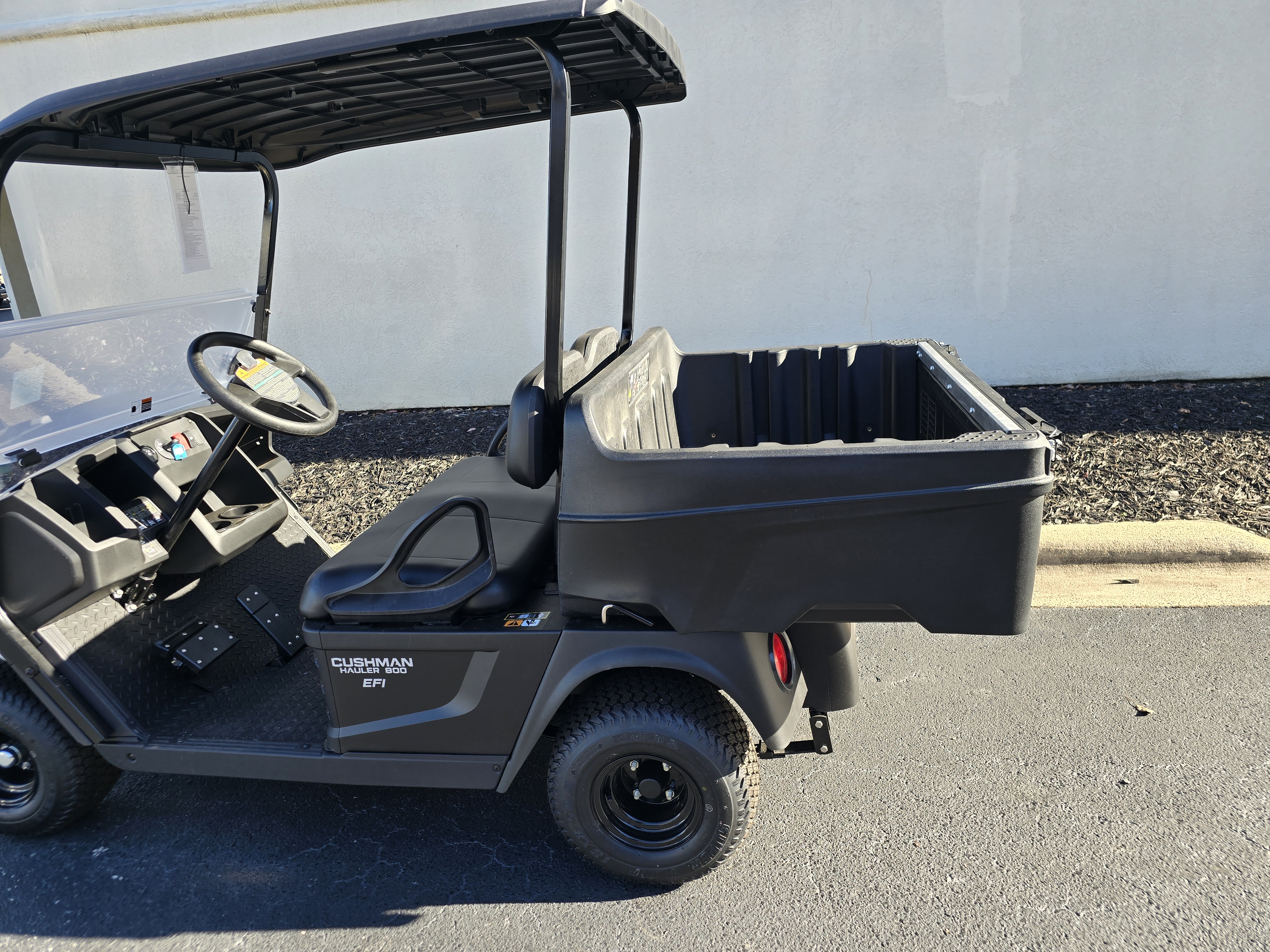

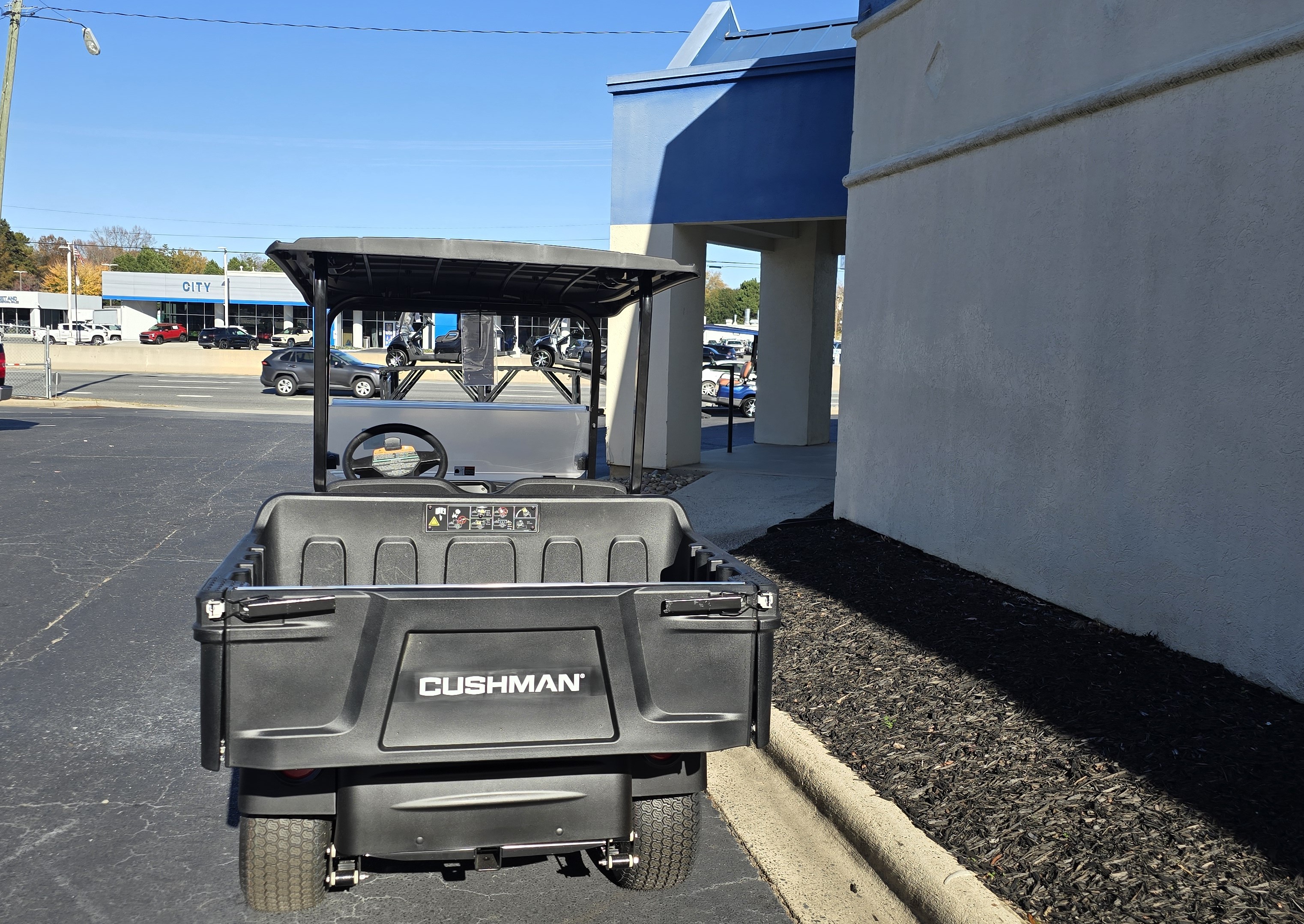

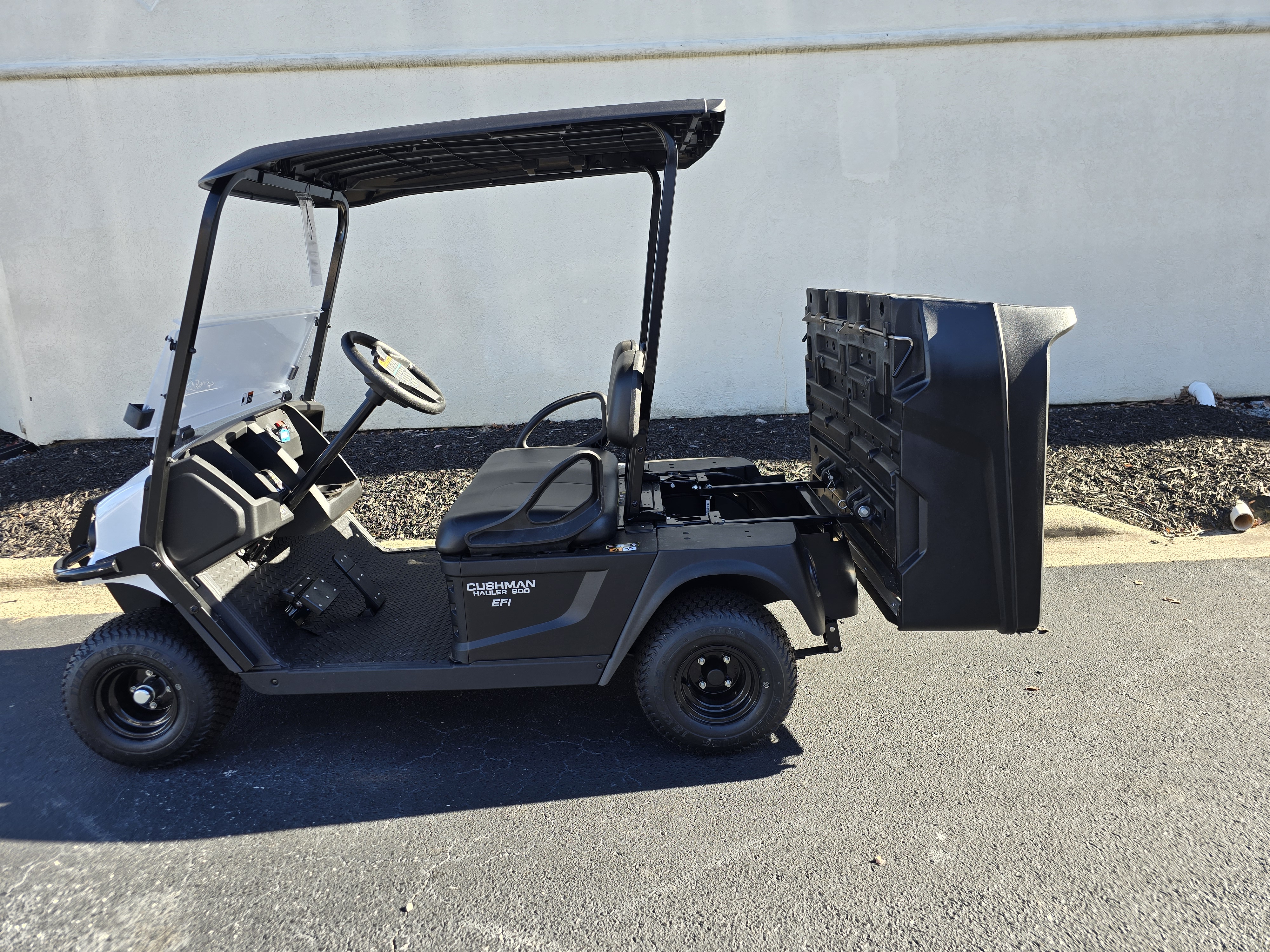

Cargo Box Capacity: 8.4 cu feet
Cargo Box Dimensions: 28.5 inches (L) x 44.5 inches (W) x 12 inches (D)
Cargo Box Material: Roto-molded Polyethylene

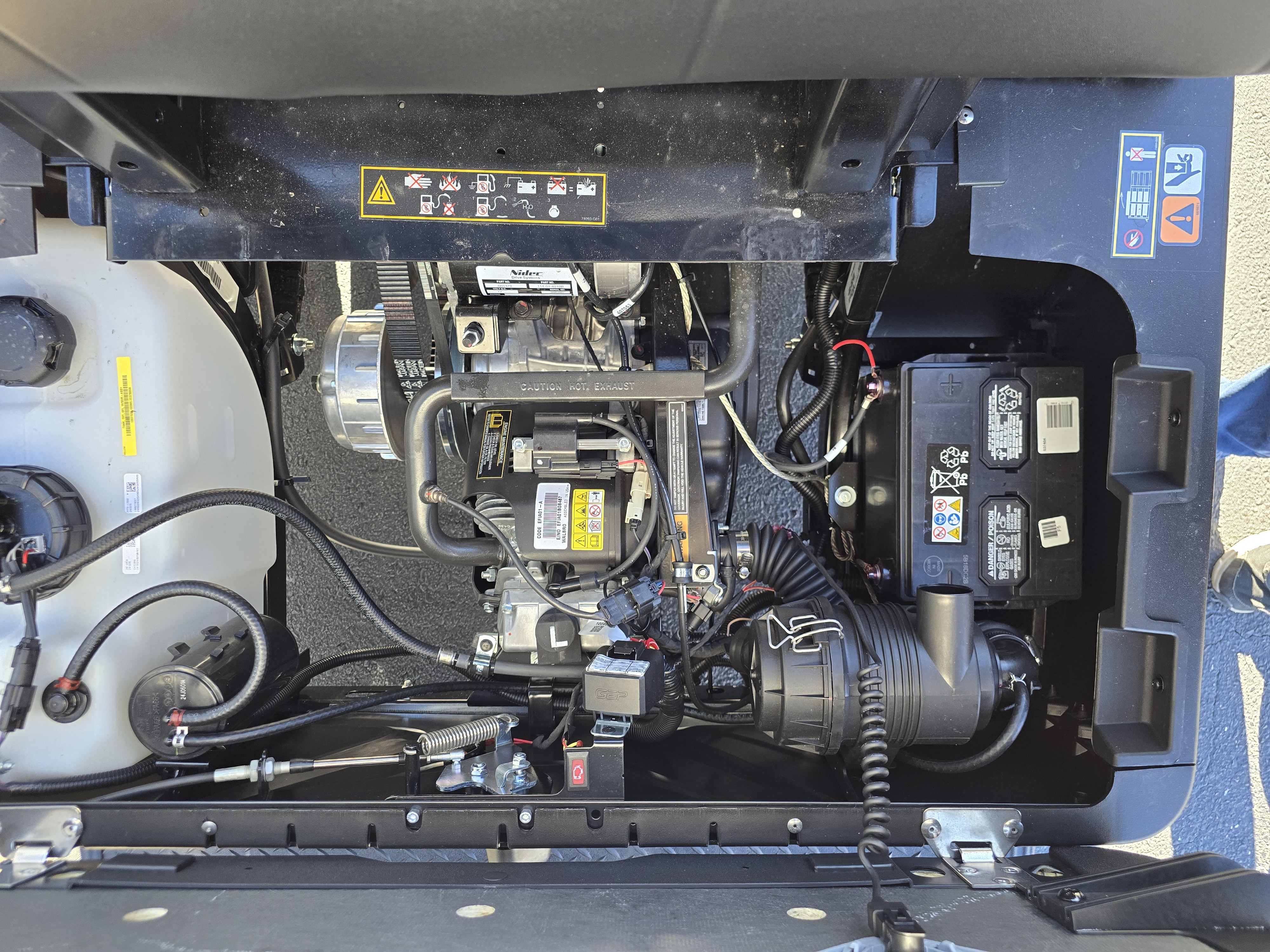

POWER
Power Train: 4-Cycle, 24.5 cu in (401cc)
Valve Train: Single Cylinder OHV
Horsepower: 13.5 hp (10.1 kW)
Electrical System: Starter/Generator.  Solid State Reg.
Battery: One, 12V Maintenance Free
Air Cleaner: Replaceable Industrial  Rated Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 5.96 Gallon (22.6 L) tank
Drive Train: Continuously Variable Transmission
Transaxle: Differential with Helical Gears
Gear Selection: Forward - Reverse
Rear Axle Ratio: 11.47: 1 (Forward)  14.35:1 (Reverse)

PERFORMANCE

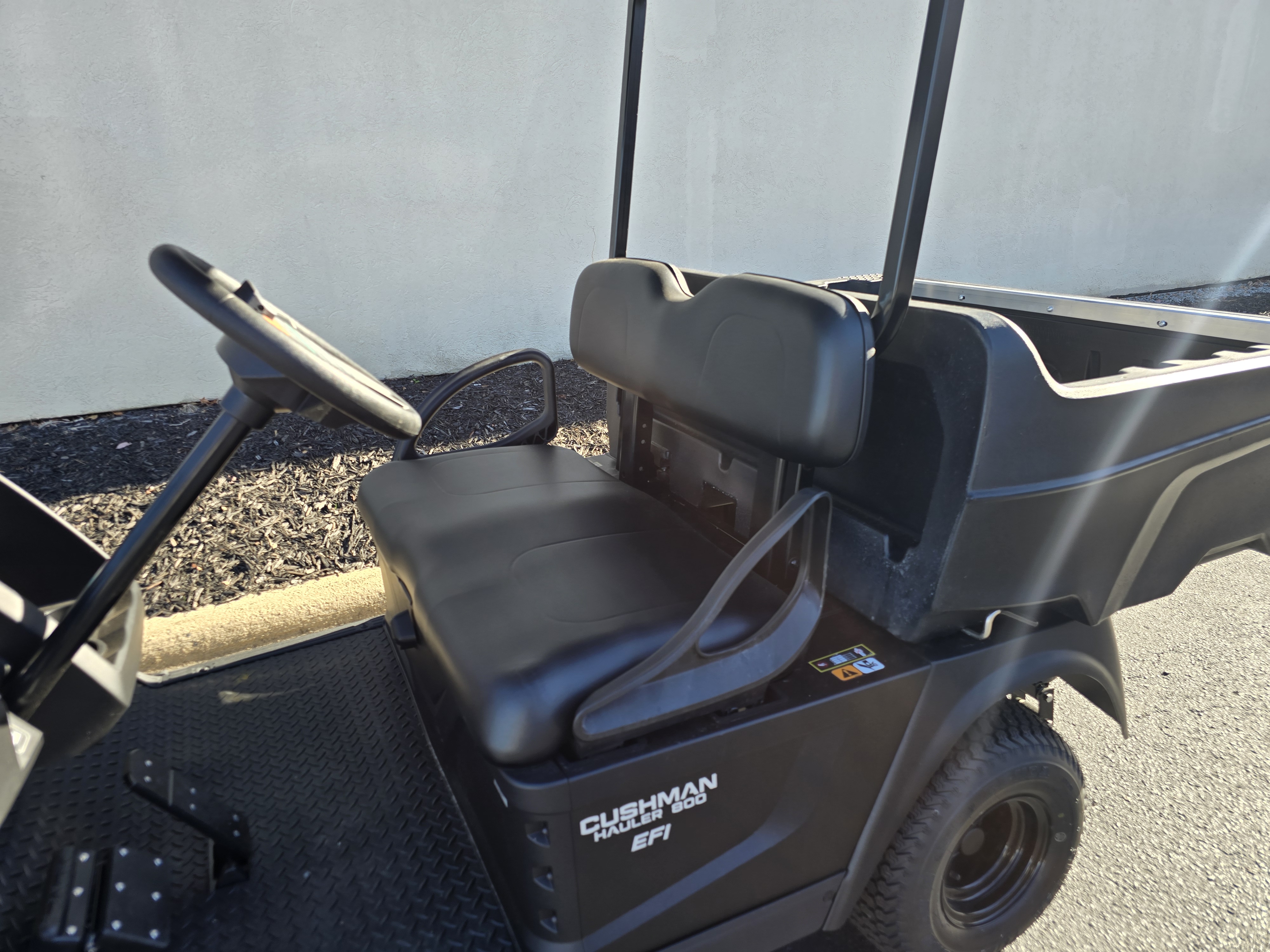

Seating Capacity: 2-Person Bench
Vehicle Load Capacity: 800 lbs
Bed Load Capacity: 400 lbs
Towing Capacity: 900 lbs
Outside Clearance Circle: 18.9 feet
Speed: 14.5 mph

STEERING AND SUSPENSION
Steering: Self-Compensating Rack and Pinion
Suspension: Leaf Springs with Hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single-Point Engagement

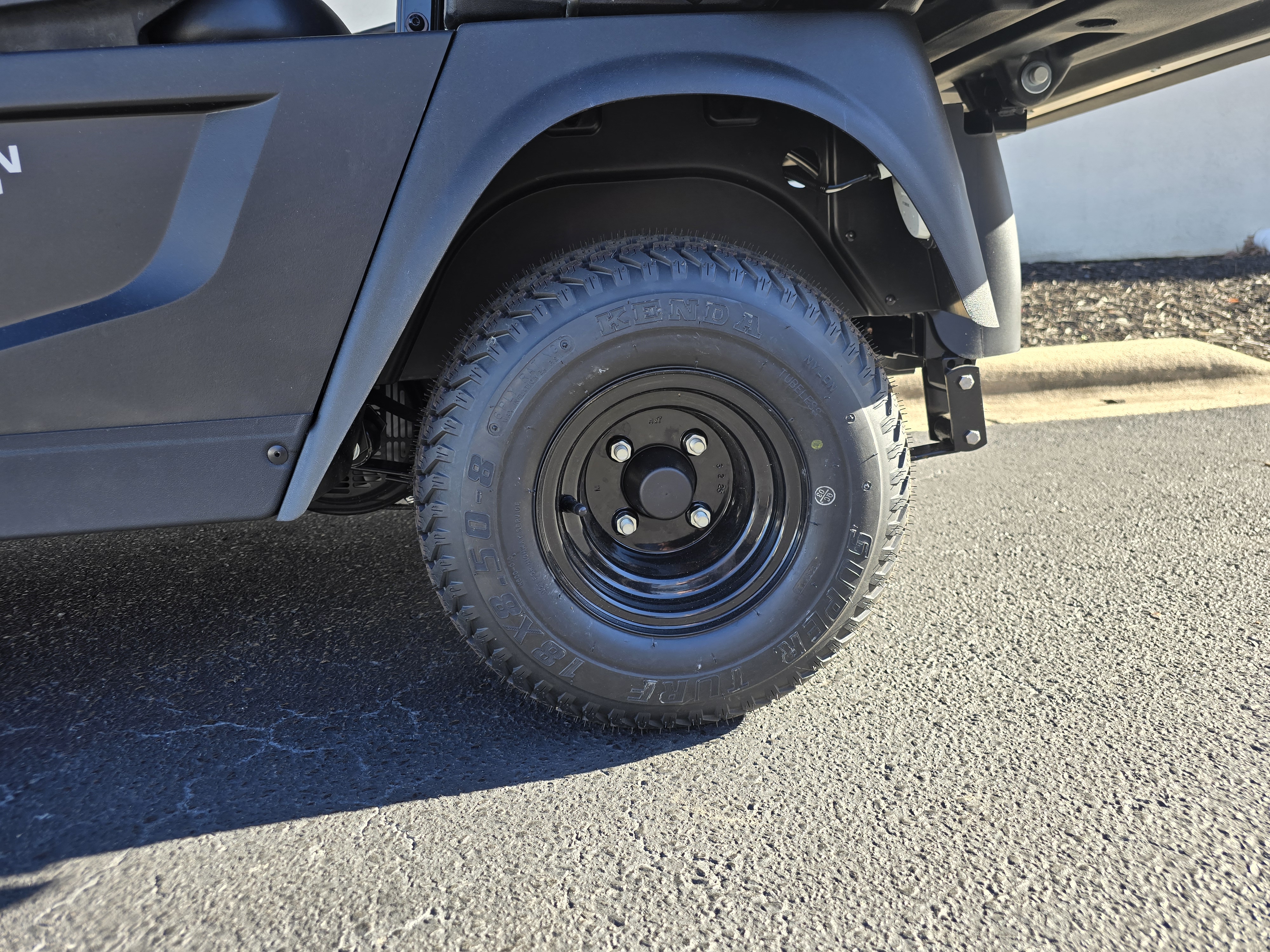

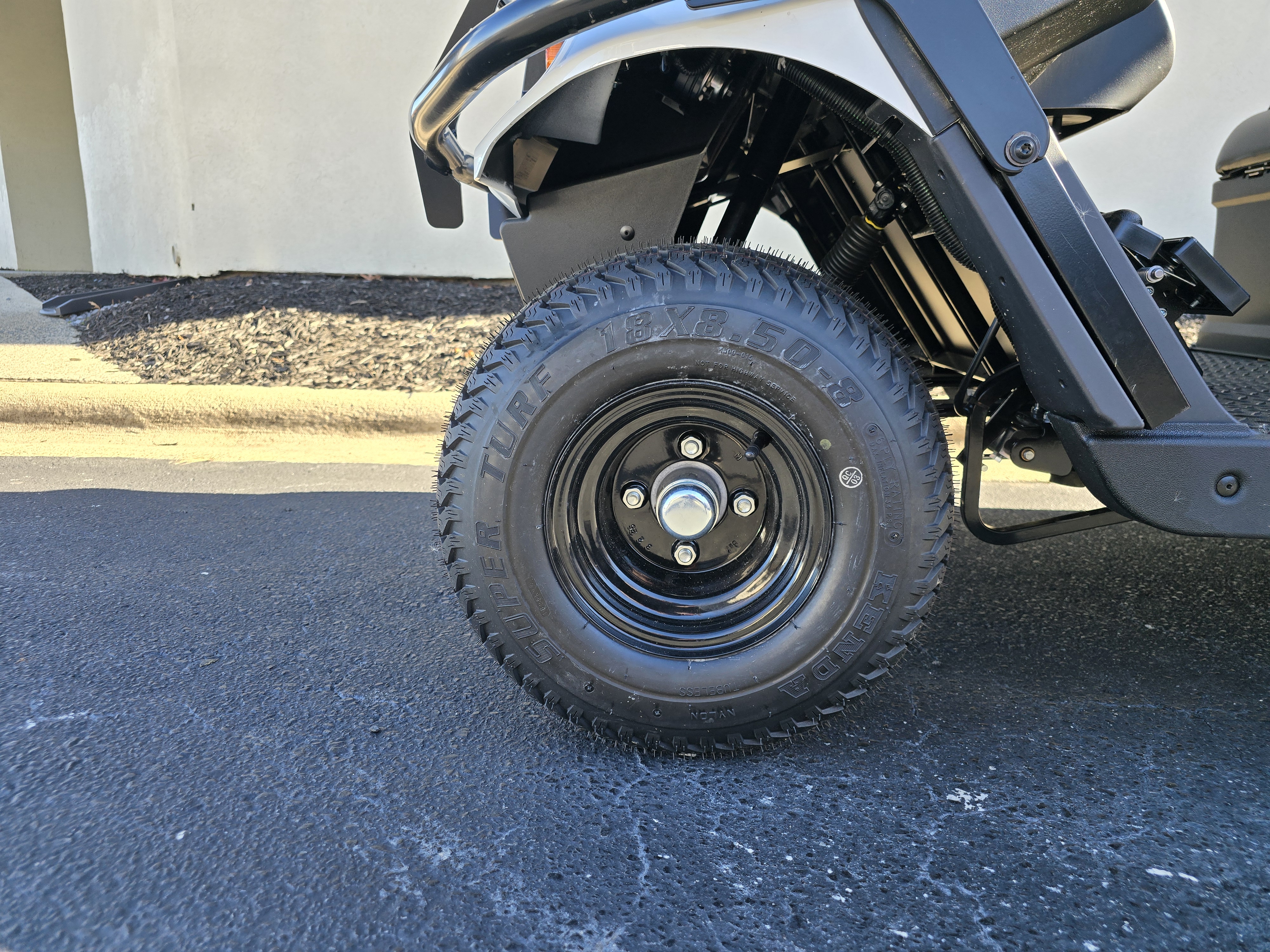

Tires: Front and Rear 18 x 8.5-8 (6 Ply)
