BODY AND CHASSIS
Frame: Welded Steel with E-Coat and DuraShield Powder Coat
Body and Finish: Injection Molded TPO
DIMENSIONS
Length 110 inches
Width 49 inches
Overall Height: 47 inches no Canopy
                         69.5 inches with Roof
Wheel Base: 65.5 inches
Wheel Track: 37 inches (Front)/38 inches (Rear)
Ground Clearance: 4.3 inches

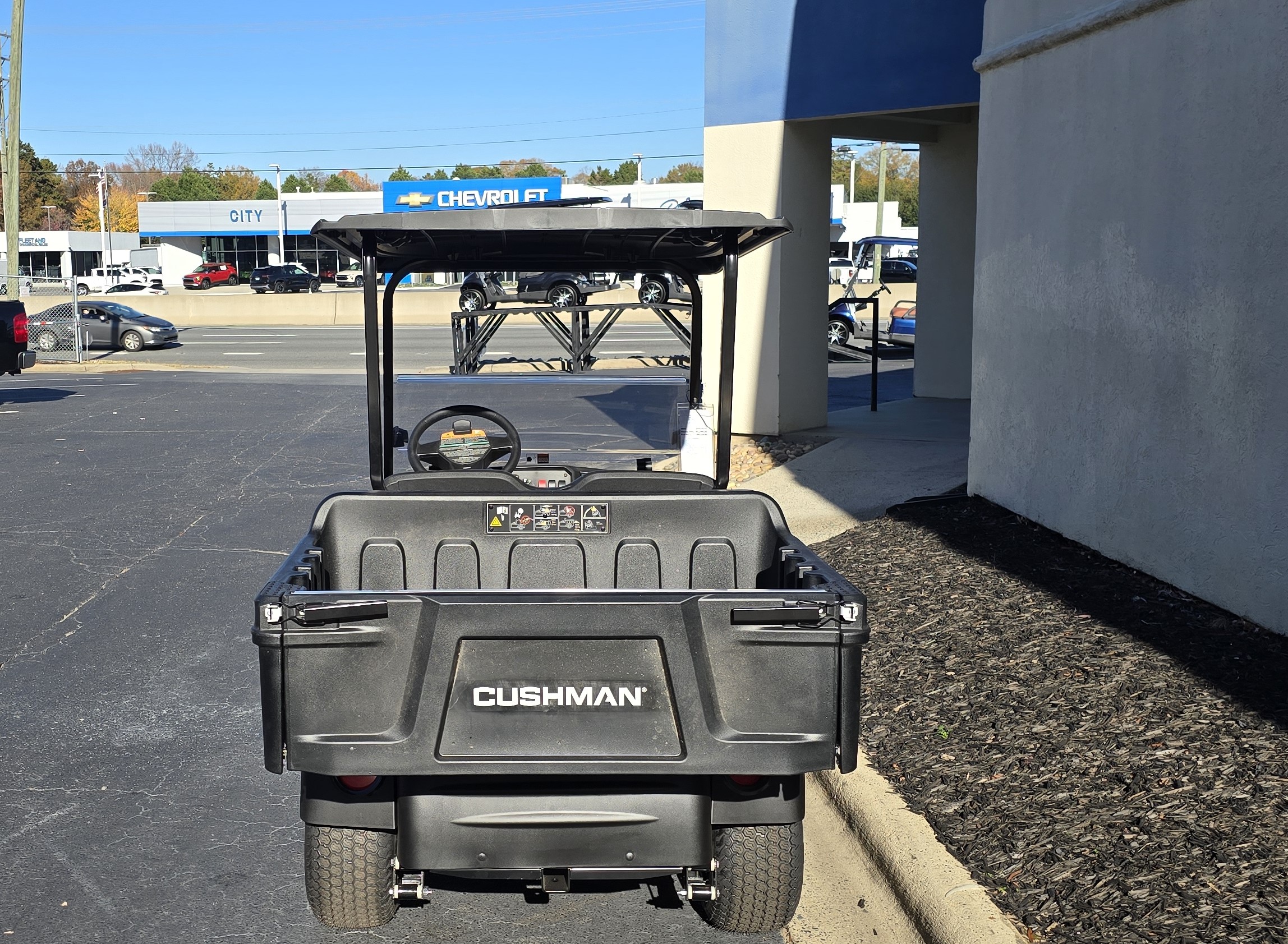

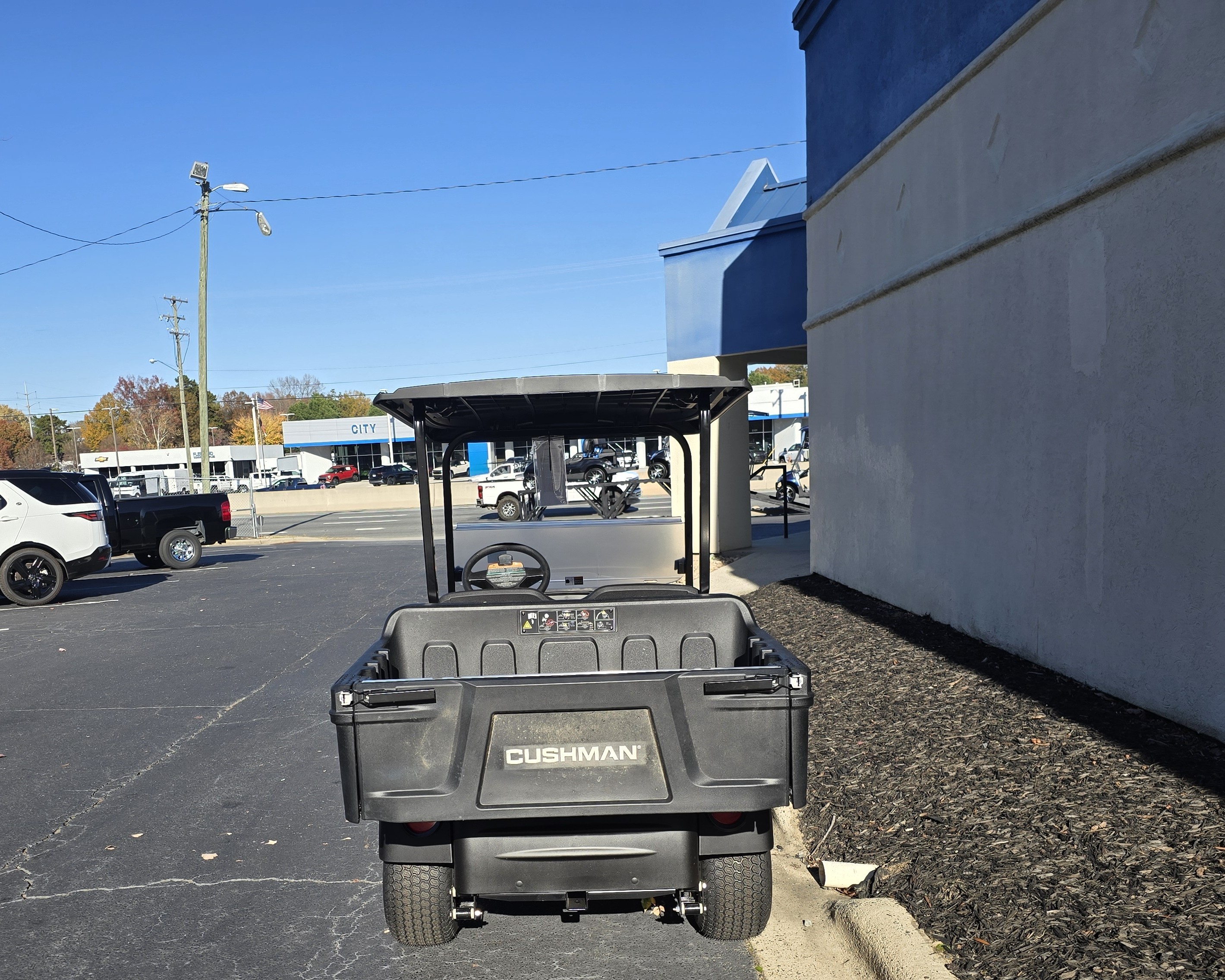

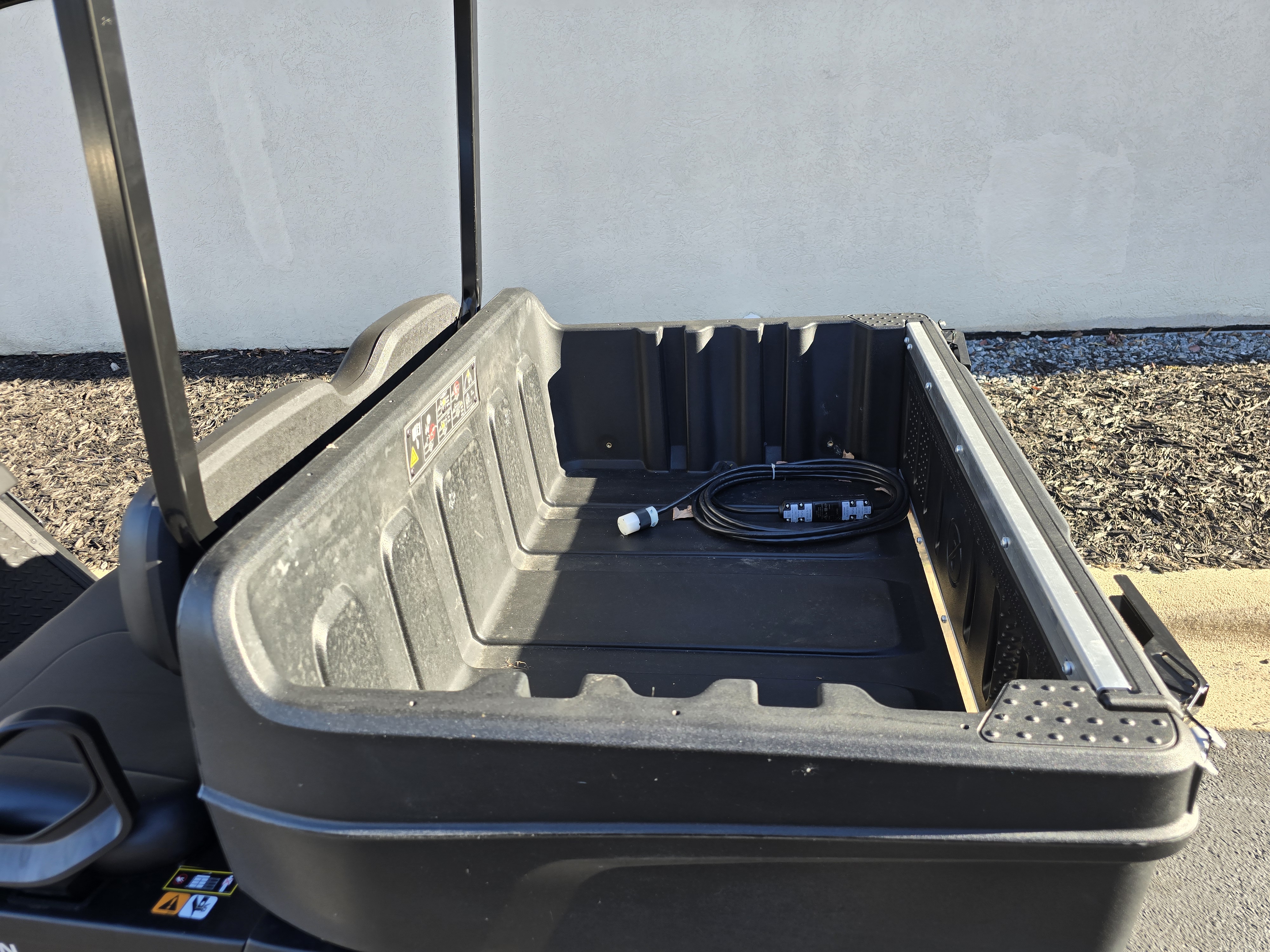

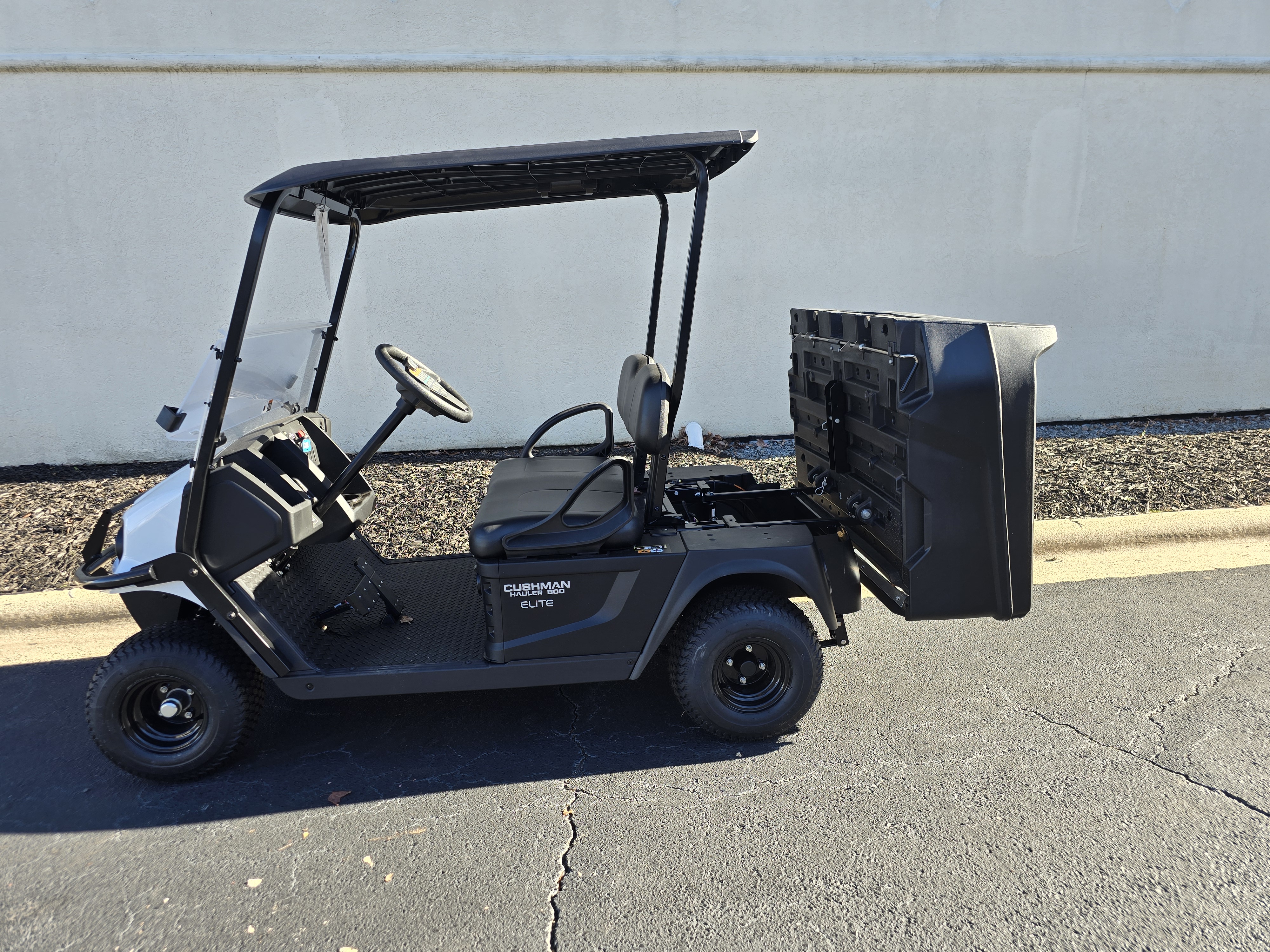

Cargo Box Capacity: 8.4 cu feet
Cargo Box Dimensions: 28.5 inches (L) x 44.5 inches (W) x 12 inches (D)
Cargo Box Material: Roto-molded Polyethylene
POWER

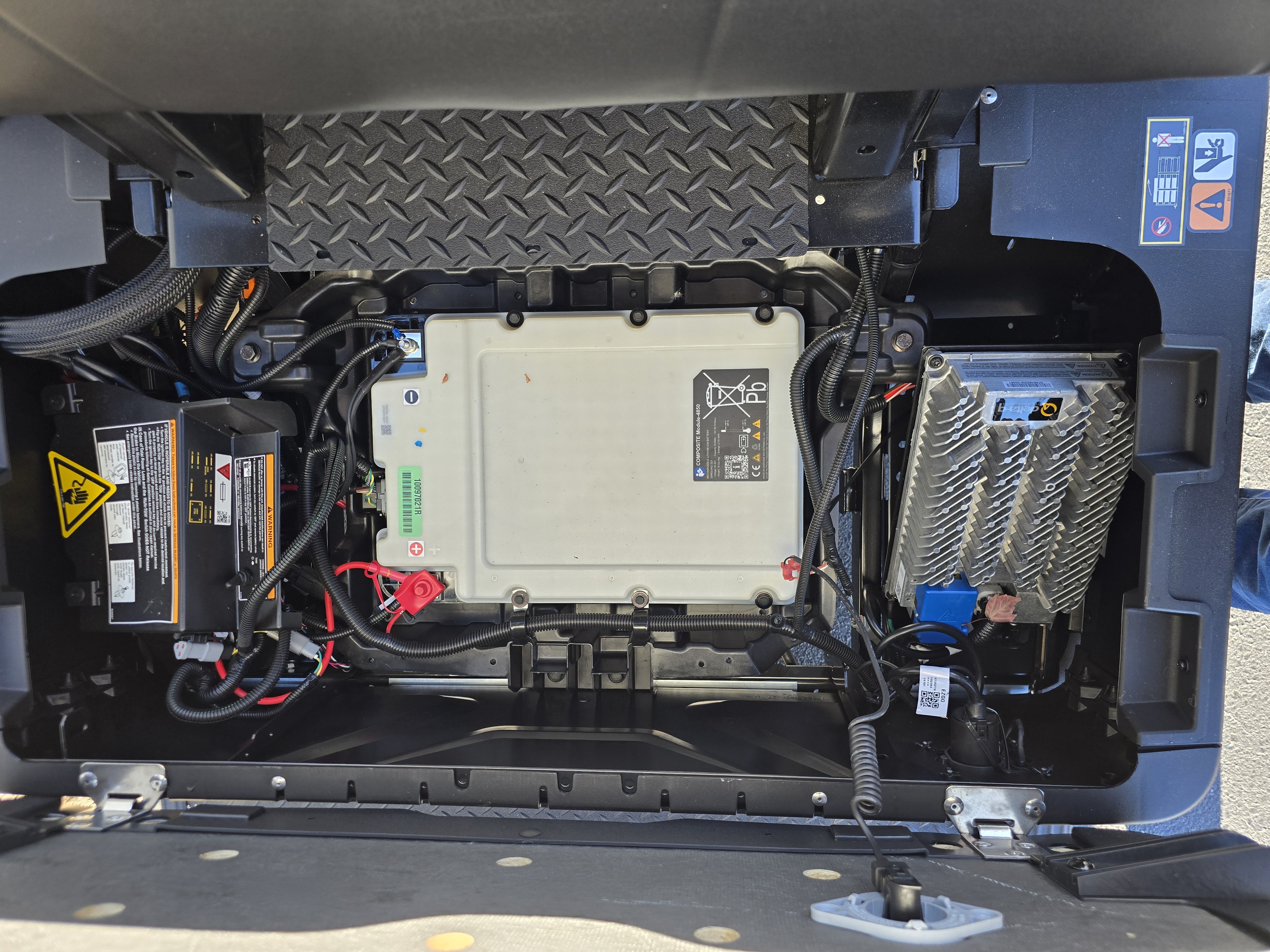

Power Train: 56.7 Li-Ion Battery
Horsepower: 11.7hp Peak
Electrical System: 48V, 12V Auxiliary
Battery: 2.2 Elite - Single Pack
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears

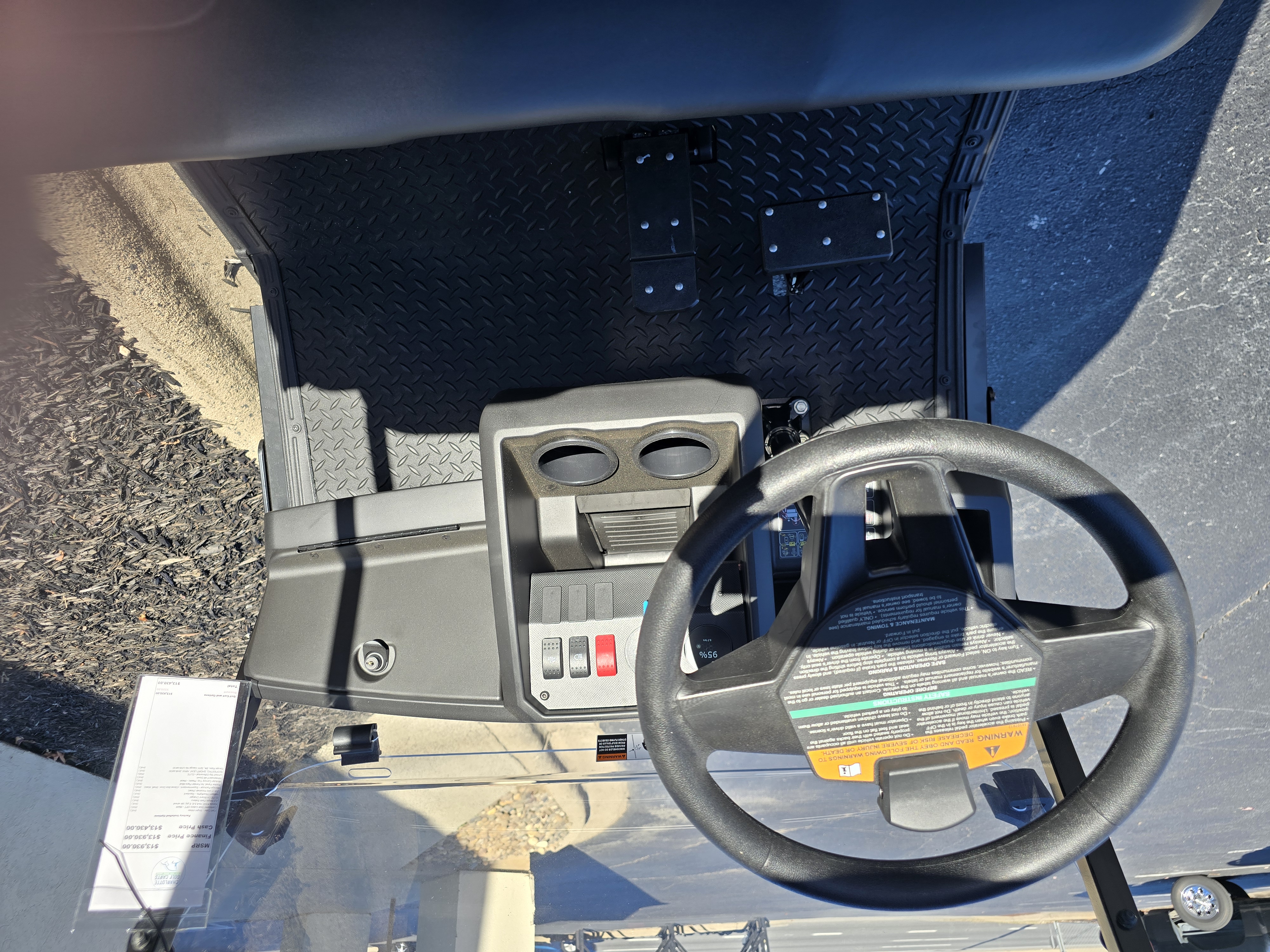

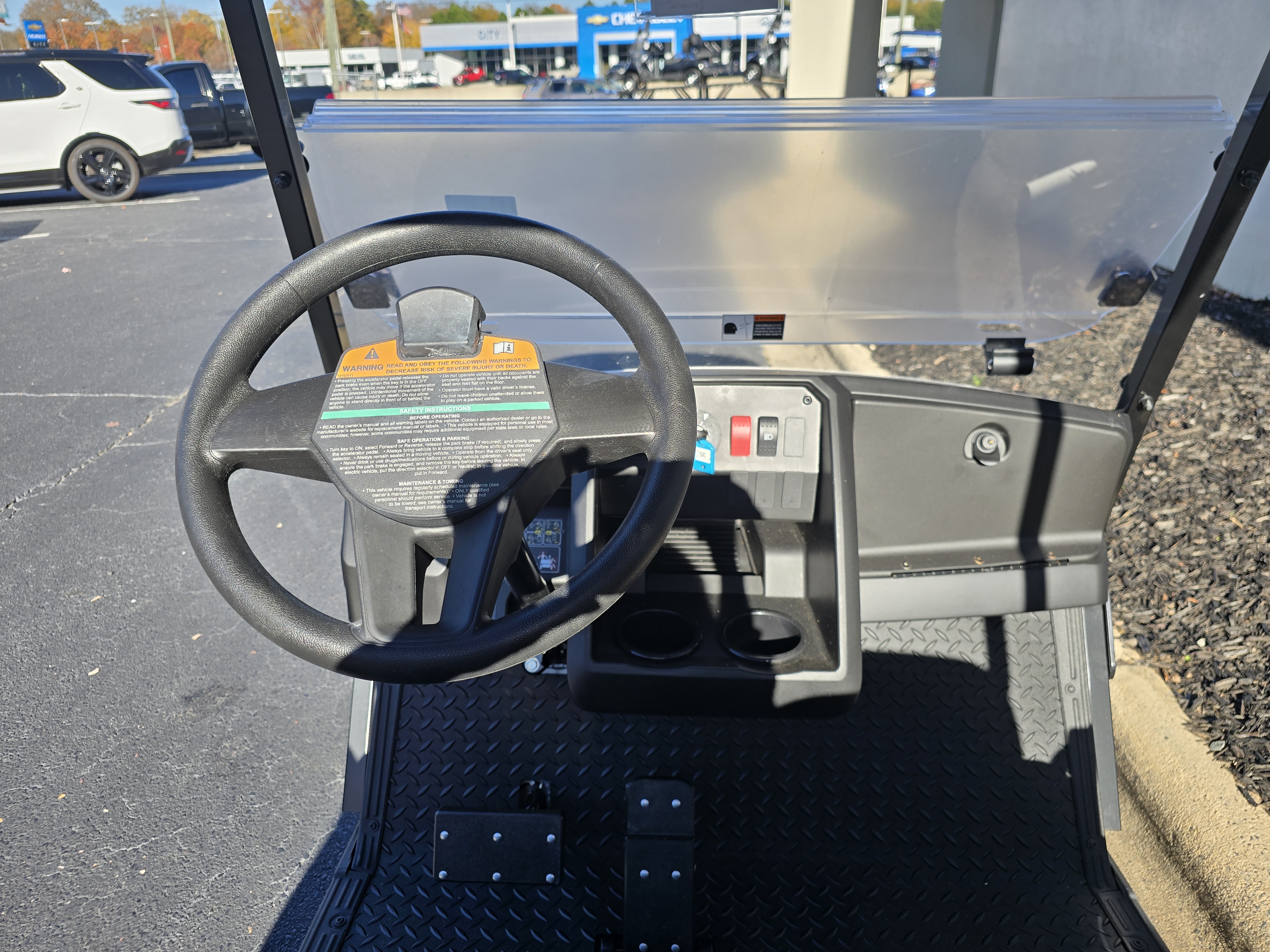

Gear Selection: Dash Mount Forward - Neutral - Reverse Key Switch
Rear Axle Ratio: 16.99:1
PERFORMANCE

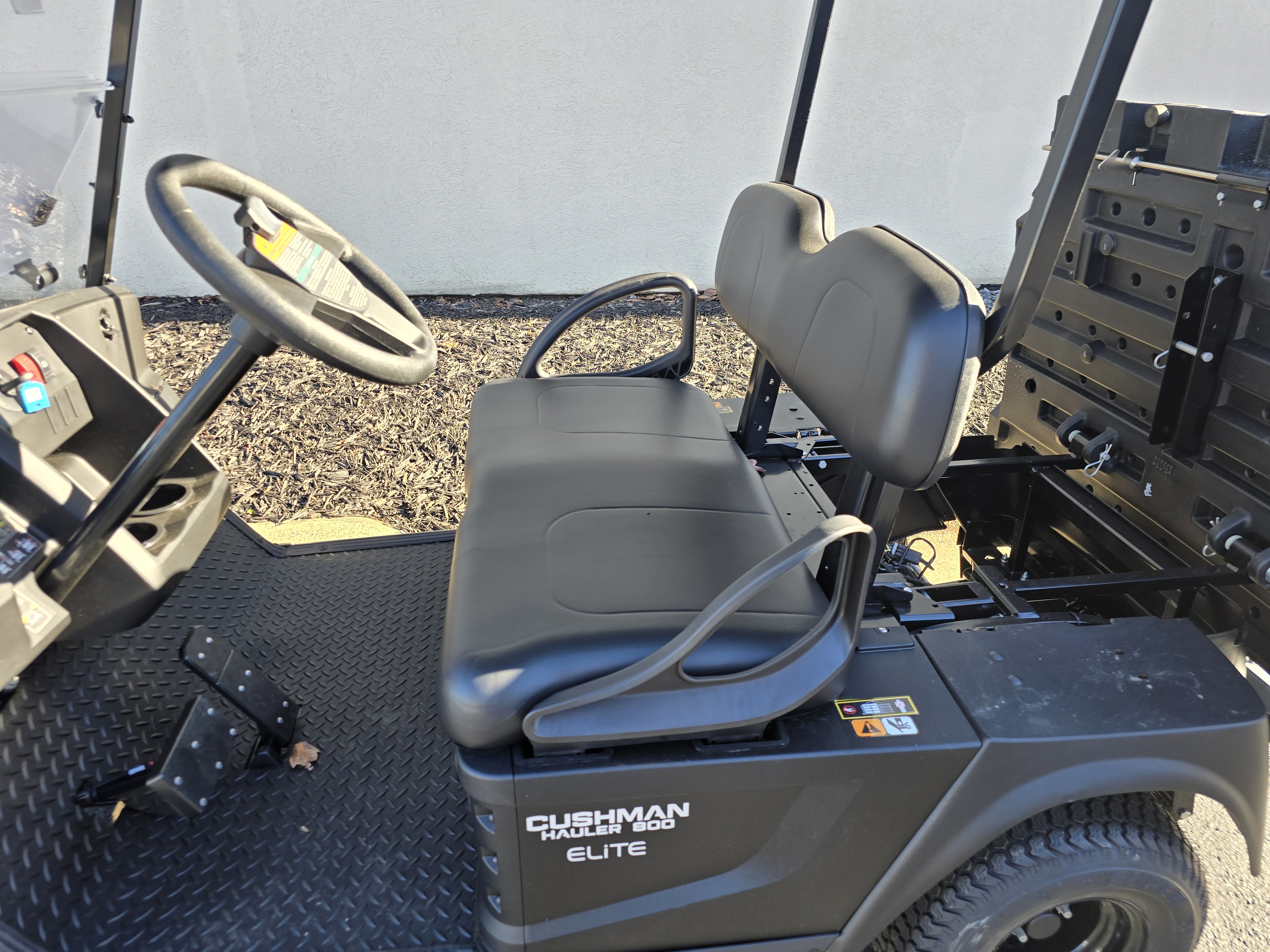

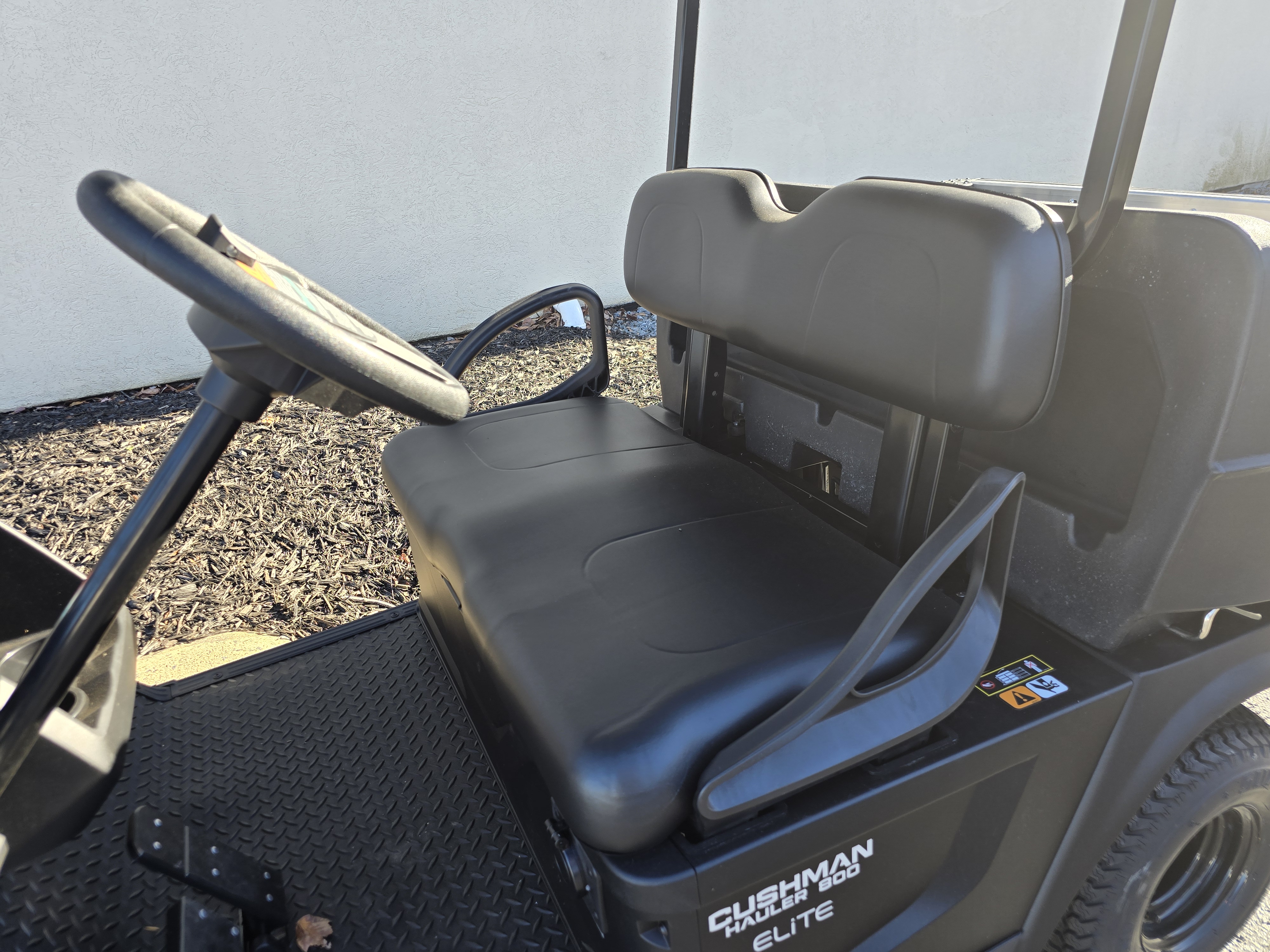

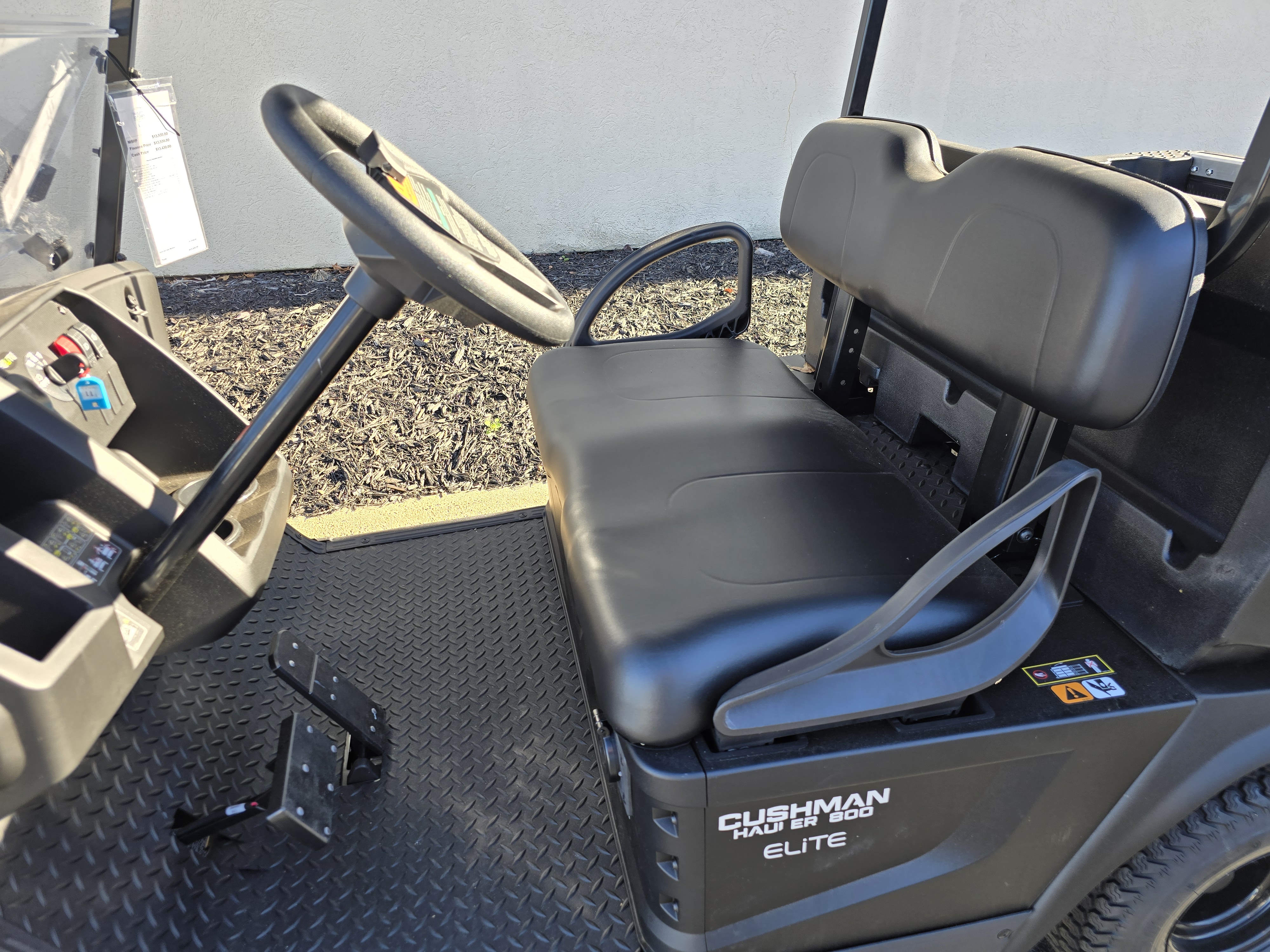

Seating Capacity: 2-Person Bench
Vehicle Load Capacity: 800 lbs
Bed Load Capacity: 400 lbs
Towing Capacity: 900 lbs
Outside Clearance Circle: 18.9 feet
Speed: 16.5 mph
STEERING AND SUSPENSION
Steering: Self-Compensating Rack and Pinion
Suspension: Leaf Springs with Hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake: Automatic Electro-Magnetic

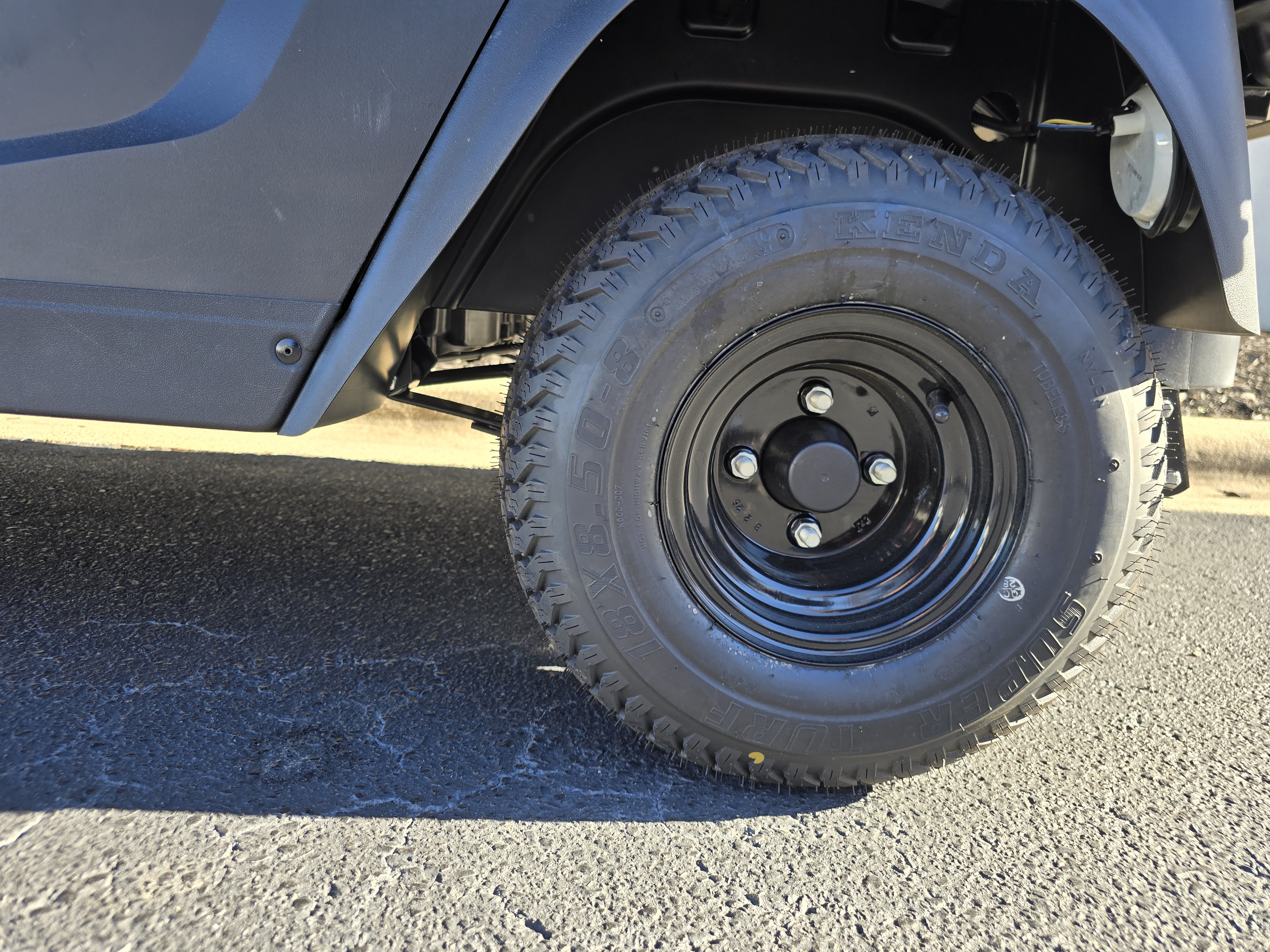

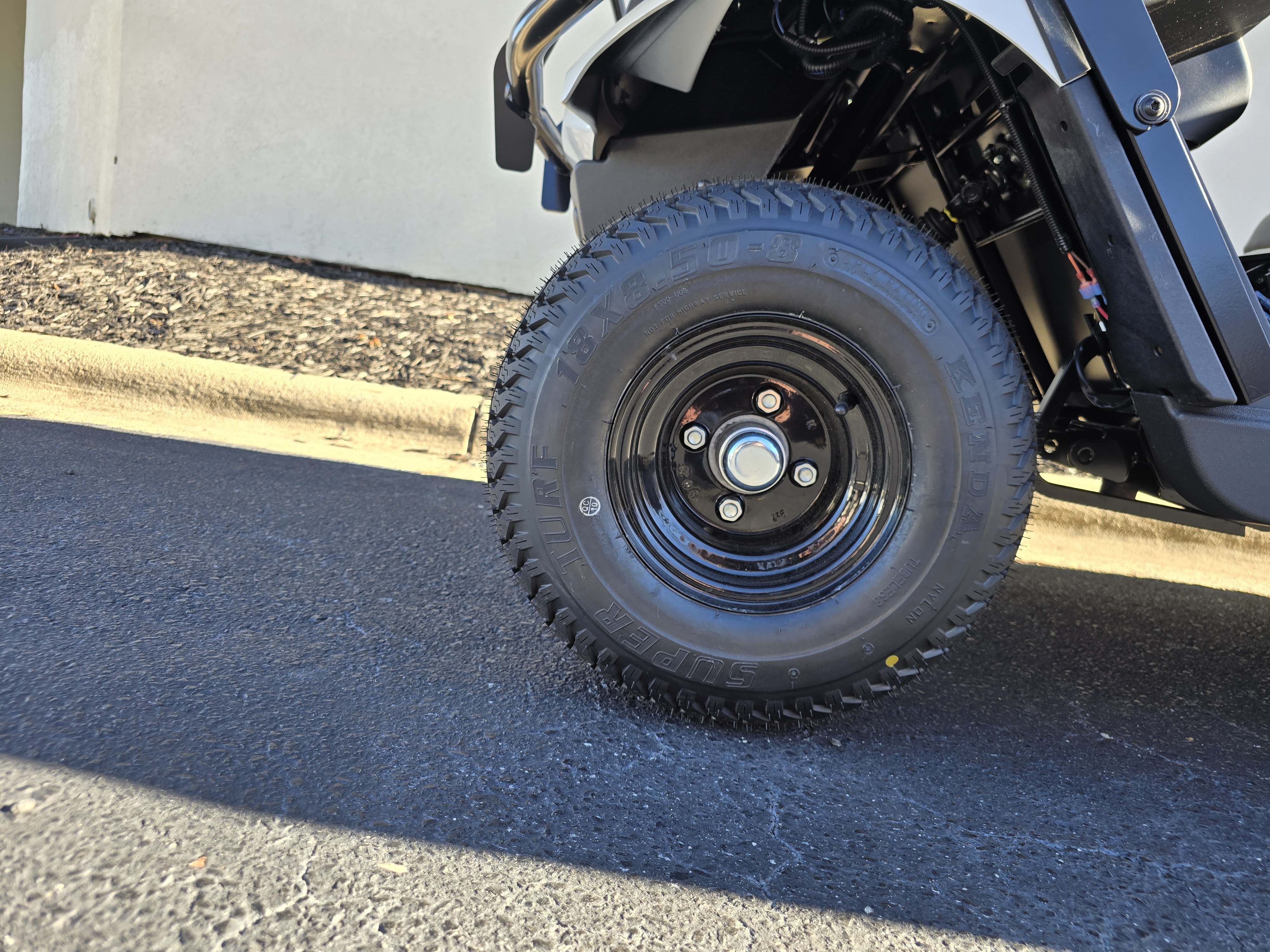

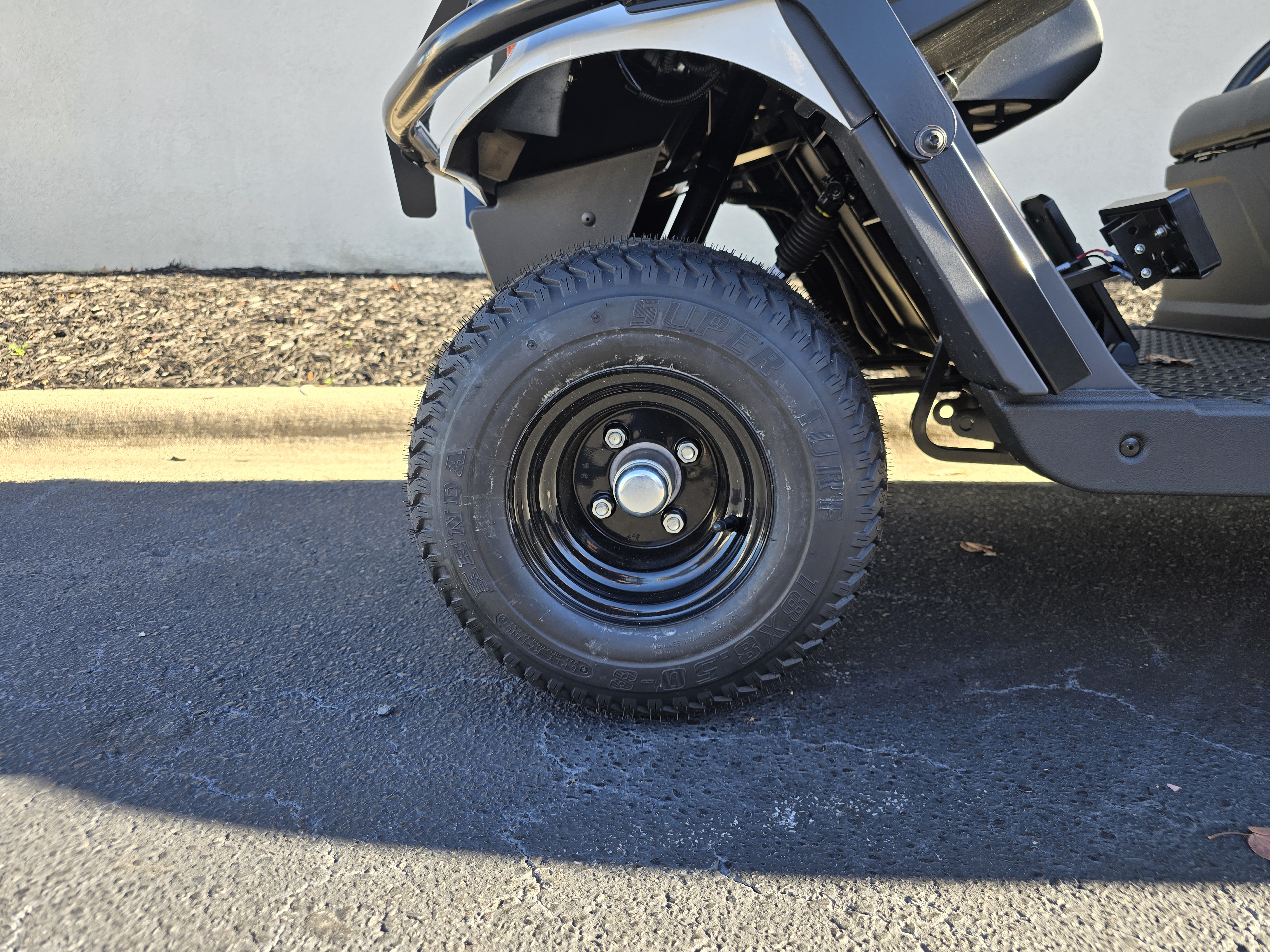

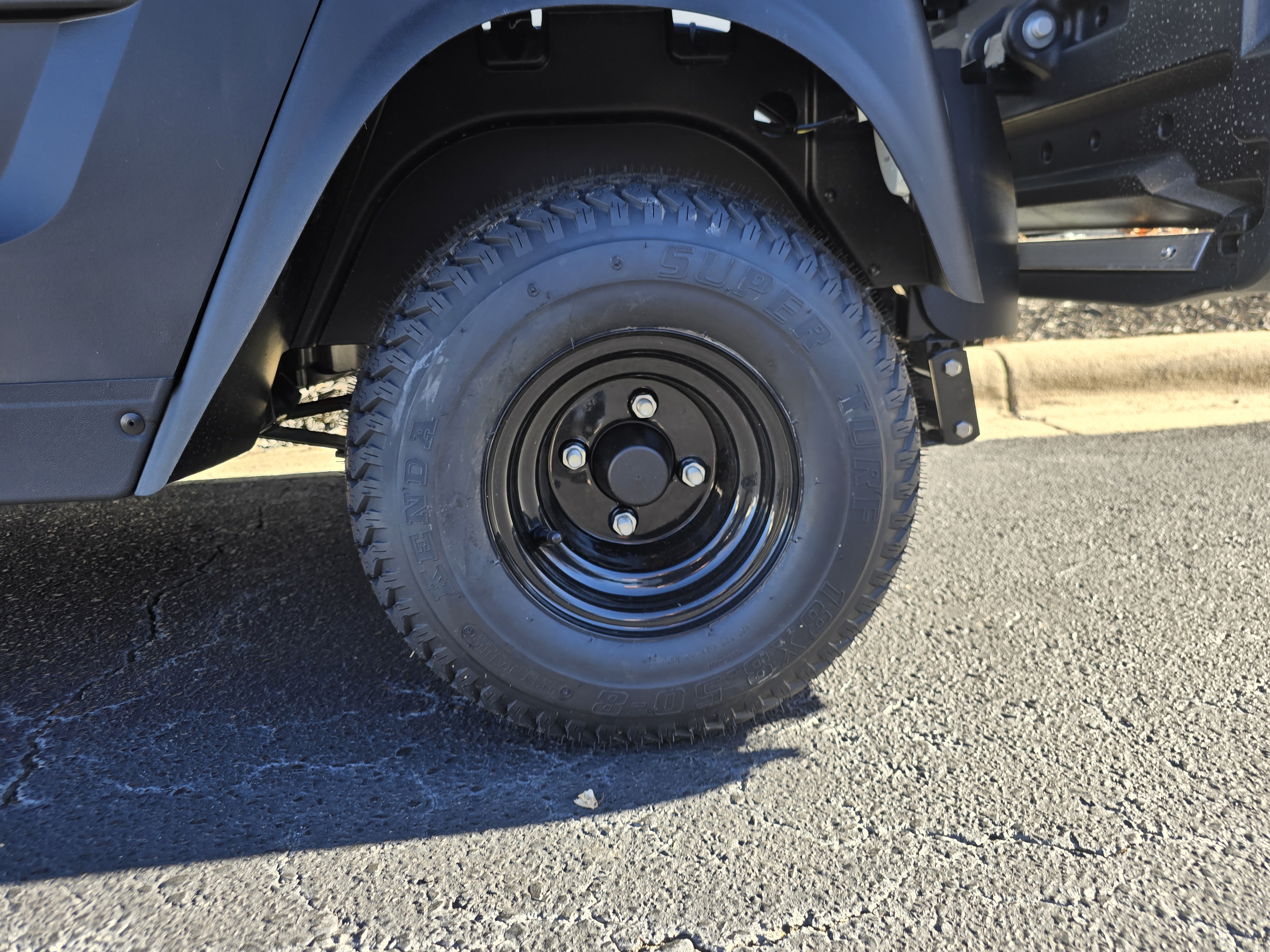

Tires: Front and Rear 18 x 8.5-8 (6 Ply)
